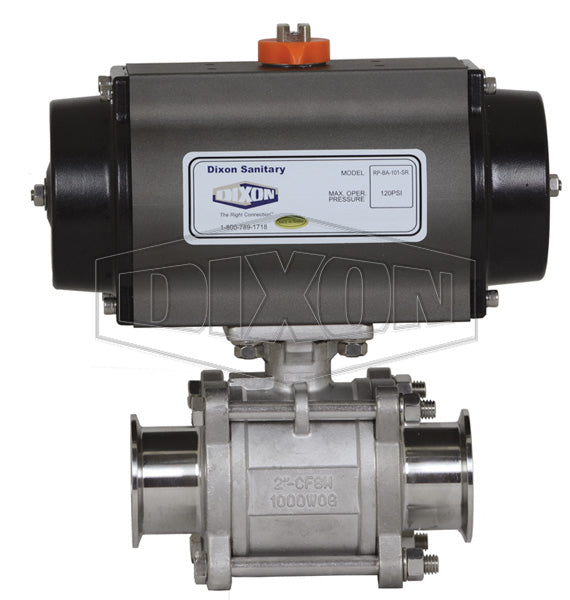

BV2CV-050CC-BCC Dixon Valve 1/2" Pneumatically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Double Acting - Seat: Virgin PTFE

BV2CV-050CC-BCC Dixon Valve 1/2" Pneumatically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Double Acting - Seat: Virgin PTFE

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Pneumatically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Double Acting

Seat: Virgin PTFE
Specifications for Variant SKU: BV2CV-050CC-BCC Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Features:
  • Compact design for areas with tight space restrictions.
  • Full-port valve design offers lower pressure drop and a less turbulent flow.
  • Balanced encapsulated valve construction minimizes cold-flow of seats.
  • Precision stainless steel balls reduce torque and friction losses while extending the seat life of the valve.
  • Actuator is tested to one million cycles and it features bi-directional stops for ±5º travel adjustment and visual position indication.
  • 80 PSI plant air is required.
  • Actuator Maximum Operating Pressure: 120 PSI.
  • Temperature Range: -40°F to 200°F (-40°C to 93°C).
Construction:
  • Valve has Virgin PTFE seats, a blow-out proof stainless steel stem and live-loaded stem packing.
  • ID polish is Ra 32 minimum.
  • Rack and Pinion actuator has a hard anodized aluminum body, nickel plated anti-blowout pinion, Buna-N O-rings and NAMUR mounting.
  • Material: 316 Stainless Steel.
Safety Notes:
  • Even though there are torque safety factors built into our automated ball valve packages, actual service conditions must also be considered when selecting the proper product for the appropriate application.
  • Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required. Please consult Dixon when dealing with these types of applications.
Part Number Size Dimensions
A B C D E F Valve Pressure
Rating
BV2CV-050CC-BCC 1/2" 4.3" 4.1" 5.0" 4.8" 2.9" 1.5" 1000 PSI WOG
BV2CV-075CC-BCC 3/4" 4.7" 4.4" 5.3" 4.8" 2.9" 1.8" 1000 PSI WOG
BV2CV-100CC-BCC 1" 4.9" 5.2" 6.0" 5.6" 3.2" 2.1" 1000 PSI WOG
BV2CV-150CC-BCC 1-1/2" 5.6" 6.6" 7.3" 6.1" 3.7" 2.7" 1000 PSI WOG
BV2CV-200CC-BCC 2" 6.4" 6.9" 7.7" 6.1" 3.7" 3.1" 1000 PSI WOG
BV2CV-300CC-BCC 3" 9.0" 9.7" 10.5" 10.6" 5.6" 4.2" 800 PSI WOG
BV2CV-400CC-BCC 4" 9.6" 10.9" 11.7" 10.6" 5.6" 5.3" 800 PSI WOG
