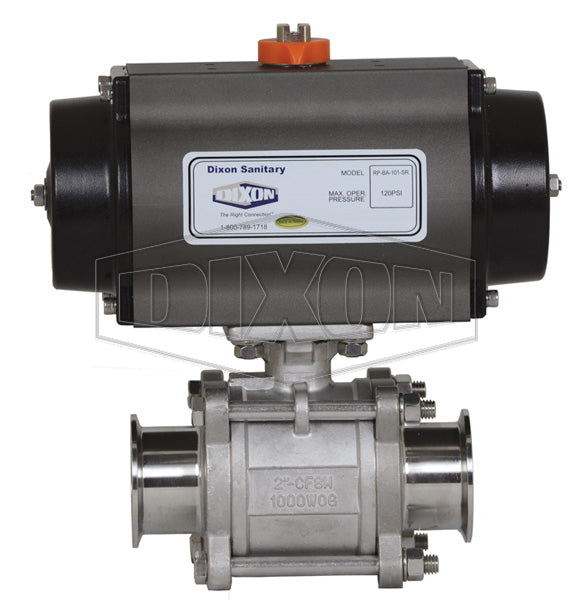

BV2CV-100CC-BCC Dixon Valve 1" Pneumatically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Double Acting - Seat: Virgin PTFE

BV2CV-100CC-BCC Dixon Valve 1" Pneumatically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Double Acting - Seat: Virgin PTFE

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Pneumatically Actuated 3-Piece Sanitary Clamp End Ball Valve - 316 Stainless Steel - Double Acting

Seat: Virgin PTFE
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BV2CV-100CC-BCC Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Features:
  • Compact design for areas with tight space restrictions.
  • Full-port valve design offers lower pressure drop and a less turbulent flow.
  • Balanced encapsulated valve construction minimizes cold-flow of seats.
  • Precision stainless steel balls reduce torque and friction losses while extending the seat life of the valve.
  • Actuator is tested to one million cycles and it features bi-directional stops for ±5º travel adjustment and visual position indication.
  • 80 PSI plant air is required.
  • Actuator Maximum Operating Pressure: 120 PSI.
  • Temperature Range: -40°F to 200°F (-40°C to 93°C).
Construction:
  • Valve has Virgin PTFE seats, a blow-out proof stainless steel stem and live-loaded stem packing.
  • ID polish is Ra 32 minimum.
  • Rack and Pinion actuator has a hard anodized aluminum body, nickel plated anti-blowout pinion, Buna-N O-rings and NAMUR mounting.
  • Material: 316 Stainless Steel.
Safety Notes:
  • Even though there are torque safety factors built into our automated ball valve packages, actual service conditions must also be considered when selecting the proper product for the appropriate application.
  • Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required. Please consult Dixon when dealing with these types of applications.
Part Number Size Dimensions
A B C D E F Valve Pressure
Rating
BV2CV-050CC-BCC 1/2" 4.3" 4.1" 5.0" 4.8" 2.9" 1.5" 1000 PSI WOG
BV2CV-075CC-BCC 3/4" 4.7" 4.4" 5.3" 4.8" 2.9" 1.8" 1000 PSI WOG
BV2CV-100CC-BCC 1" 4.9" 5.2" 6.0" 5.6" 3.2" 2.1" 1000 PSI WOG
BV2CV-150CC-BCC 1-1/2" 5.6" 6.6" 7.3" 6.1" 3.7" 2.7" 1000 PSI WOG
BV2CV-200CC-BCC 2" 6.4" 6.9" 7.7" 6.1" 3.7" 3.1" 1000 PSI WOG
BV2CV-300CC-BCC 3" 9.0" 9.7" 10.5" 10.6" 5.6" 4.2" 800 PSI WOG
BV2CV-400CC-BCC 4" 9.6" 10.9" 11.7" 10.6" 5.6" 5.3" 800 PSI WOG
