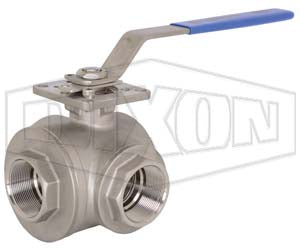

BV3IGTF-0501-A Dixon Valve 1/2" Three-Way "T" Industrial Stainless Steel Ball Valve - Female NPT - Seat: RTFE

Name: BV3IGTF-0501-A Dixon Valve 1/2" Three-Way "T" Industrial Stainless Steel Ball Valve - Female NPT - Seat: RTFE
Brand: Dixon
SKU: BV3IGTF-0501-A Dixon
Price: 240.76 USD
Availability: InStock

Save $160.51

$401.27

$401.27 - $401.27

$401.27

$240.76

$240.76 - $240.76

$240.76

Dixon Sanitary Valves
Three-Way "T" Industrial Stainless Steel Ball Valve - Female NPT

Seat: RTFE

Specifications for Variant SKU: BV3IGTF-0501-A Dixon
Shape (Orientation):	Tee
Ends Configuration:	1/2in Female NPT, 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s):	Stainless Steel
Seal Material(s):	RTFE

Features:
Full Port. FNPT end connection. Blow-out proof stem. Live-loaded stem packing. Seal: RTFE Maximum Temperature: 350°F (177°C) Flow: 3-Way
Construction:
CF8M stainless steel body and ball. ISO 5211 mounting pad.

Part Number	Size	Maximum Operating Pressure
BV3IGTF-0251-A	1/4"	1000 PSI WOG
BV3IGTF-0381-A	3/8"	1000 PSI WOG
BV3IGTF-0501-A	1/2"	1000 PSI WOG
BV3IGTF-0751-A	3/4"	1000 PSI WOG
BV3IGTF-1001-A	1"	1000 PSI WOG
BV3IGTF-1251-A	1-1/4"	800 PSI WOG
BV3IGTF-1501-A	1-1/2"	800 PSI WOG
BV3IGTF-2001-A	2"	800 PSI WOG
