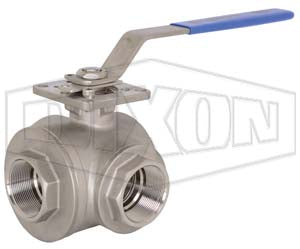

BV3IGTF-2001-A Dixon Valve 2" Three-Way "T" Industrial Stainless Steel Ball Valve - Female NPT - Seat: RTFE

BV3IGTF-2001-A Dixon Valve 2" Three-Way "T" Industrial Stainless Steel Ball Valve - Female NPT - Seat: RTFE

Save $1,099.68 Save $1,099.68
$2,749.20
$2,749.20 - $2,749.20
$2,749.20
$1,649.52
$1,649.52 - $1,649.52
$1,649.52

Dixon Sanitary Valves
Three-Way "T" Industrial Stainless Steel Ball Valve - Female NPT

Seat: RTFE
Specifications for Variant SKU: BV3IGTF-2001-A Dixon
Shape (Orientation): Tee
Ends Configuration: 2in Female NPT, 2in Female NPT, 2in Female NPT, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): RTFE
Features:
  • Full Port.
  • FNPT end connection.
  • Blow-out proof stem.
  • Live-loaded stem packing.
  • Seal: RTFE
  • Maximum Temperature: 350°F (177°C)
  • Flow: 3-Way
Construction:
  • CF8M stainless steel body and ball.
  • ISO 5211 mounting pad.
Part Number Size Maximum Operating Pressure
BV3IGTF-0251-A 1/4" 1000 PSI WOG
BV3IGTF-0381-A 3/8" 1000 PSI WOG
BV3IGTF-0501-A 1/2" 1000 PSI WOG
BV3IGTF-0751-A 3/4" 1000 PSI WOG
BV3IGTF-1001-A 1" 1000 PSI WOG
BV3IGTF-1251-A 1-1/4" 800 PSI WOG
BV3IGTF-1501-A 1-1/2" 800 PSI WOG
BV3IGTF-2001-A 2" 800 PSI WOG
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
