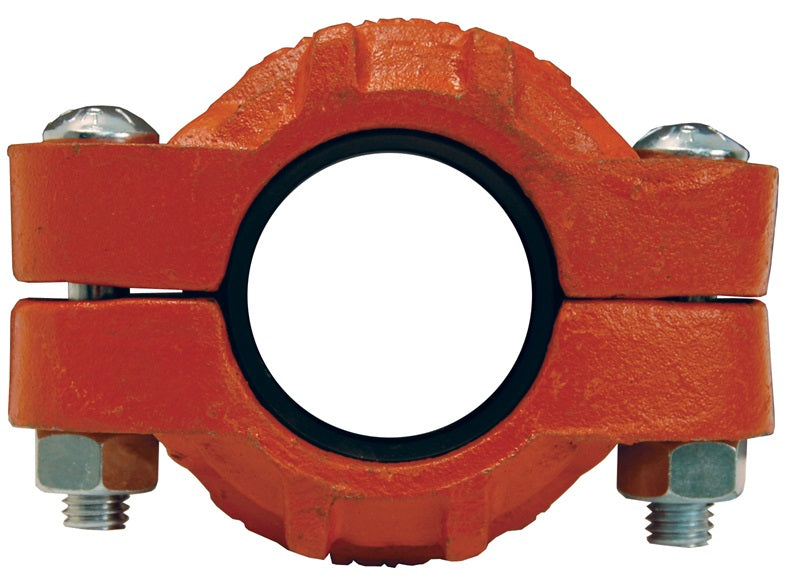

C14V by Dixon Valve | Grooved Standard Coupling | Series-S | Style 11 | 4" Nominal Size | 4.500" Pipe OD | FKM Gasket | Ductile Iron

Save $27.07

$105.36

$105.36 - $105.36

$105.36

$78.29

$78.29 - $78.29

$78.29

Dixon Valve
Grooved Standard Coupling | Series-S | Style 11

Designed for a wide range of applications including commercial/industrial construction, mining, and process piping.

Quantity

Specifications for Variant SKU: C14V Dixon
Series:	Series-S
Shape (Orientation):	Straight
Material(s):	Ductile Iron
Seal Material(s):	Viton/FKM

Features:
Housing design allows for optimum strength without excessive casting weight.
Materials:
Ductile iron body with rust-inhibiting paint.
Approvals:
UL listed and Factory Mutual approved.
Comparable to:
Victaulic's #77 Grinnell's #7001


Ductile Iron with EPDM Gasket Part Number	Ductile Iron with Nitrile Rubber Gasket Part Number	Ductile Iron with FKM Gasket Part Number	Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	Maximum End Load (Lbs.)	Bolts			Dimensions
Ductile Iron with EPDM Gasket Part Number	Ductile Iron with Nitrile Rubber Gasket Part Number	Ductile Iron with FKM Gasket Part Number	Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	Maximum End Load (Lbs.)	Qty	Size	Length	A	B	C
C115	C115BU	-	1-1/2"	1.900"	1000 PSI	2835 lbs	2	3/8"	2"	4-5/8"	3"	1-7/8"
C12	C12BU	C12V	2"	2.375"	1000 PSI	4430 lbs	2	1/2"	2-3/4"	5-15/64"	3-45/64"	1-27/32"
C125	C125BU	-	2-1/2"	2.875"	1000 PSI	6492 lbs	2	1/2"	2-3/4"	5-5/8"	4-1/4"	1-27/32"
C13	C13BU	C13V	3"	3.500"	1000 PSI	9621 lbs	2	1/2"	3"	6-21/32"	5"	1-27/32"
C14	C14BU	C14V	4"	4.500"	1000 PSI	15904 lbs	2	5/8"	3-1/4"	8-17/64"	6-3/8"	2-3/64"
C16	C16BU	-	6"	6.625"	1000 PSI	34472 lbs	2	3/4"	4-1/4"	11-7/32"	8-57/64""	2-3/64"
C18	C18BU	-	8"	8.625"	800 PSI	46741 lbs	2	7/8"	5"	14-1/64"	11-3/8"	2-23/64"
C20	C20BU	-	10"	10.750"	800 PSI	72610 lbs	2	7/8"	5"	16-5/8"	13-1/2"	2-5/8"
