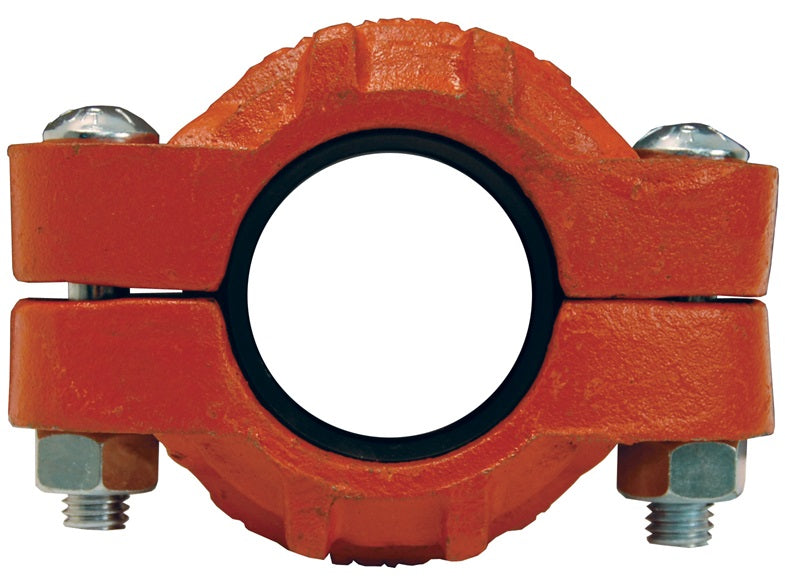

C18 by Dixon Valve | Grooved Standard Coupling | Series-S | Style 11 | 8" Nominal Size | 8.625" Pipe OD | EPDM Gasket | Ductile Iron

C18 by Dixon Valve | Grooved Standard Coupling | Series-S | Style 11 | 8" Nominal Size | 8.625" Pipe OD | EPDM Gasket | Ductile Iron

Save $106.09 Save $106.09
$265.22
$265.22 - $265.22
$265.22
$159.13
$159.13 - $159.13
$159.13

Dixon Valve
Grooved Standard Coupling | Series-S | Style 11

Designed for a wide range of applications including commercial/industrial construction, mining, and process piping.
Specifications for Variant SKU: C18 Dixon
Series: Series-S
Shape (Orientation): Straight
Material(s): Ductile Iron
Seal Material(s): EPDM
Maximum Clamp I.D.: 8.625
Features:
  • Housing design allows for optimum strength without excessive casting weight.
Materials:
  • Ductile iron body with rust-inhibiting paint.
Approvals:
  • UL listed and Factory Mutual approved.
Comparable to:
  • Victaulic's #77
  • Grinnell's #7001
Ductile Iron
with EPDM Gasket
Part Number		 Ductile Iron
with Nitrile Rubber Gasket
Part Number		 Ductile Iron
with FKM Gasket
Part Number		 Nominal
Size		 Pipe
O.D.		 Maximum
Working Pressure
PSI at 70°F (21°C)		 Maximum
End Load
(Lbs.)		 Bolts Dimensions
Qty Size Length A B C
C115 C115BU - 1-1/2" 1.900" 1000 PSI 2835 lbs 2 3/8" 2" 4-5/8" 3" 1-7/8"
C12 C12BU C12V 2" 2.375" 1000 PSI 4430 lbs 2 1/2" 2-3/4" 5-15/64" 3-45/64" 1-27/32"
C125 C125BU - 2-1/2" 2.875" 1000 PSI 6492 lbs 2 1/2" 2-3/4" 5-5/8" 4-1/4" 1-27/32"
C13 C13BU C13V 3" 3.500" 1000 PSI 9621 lbs 2 1/2" 3" 6-21/32" 5" 1-27/32"
C14 C14BU C14V 4" 4.500" 1000 PSI 15904 lbs 2 5/8" 3-1/4" 8-17/64" 6-3/8" 2-3/64"
C16 C16BU - 6" 6.625" 1000 PSI 34472 lbs 2 3/4" 4-1/4" 11-7/32" 8-57/64"" 2-3/64"
C18 C18BU - 8" 8.625" 800 PSI 46741 lbs 2 7/8" 5" 14-1/64" 11-3/8" 2-23/64"
C20 C20BU - 10" 10.750" 800 PSI 72610 lbs 2 7/8" 5" 16-5/8" 13-1/2" 2-5/8"
