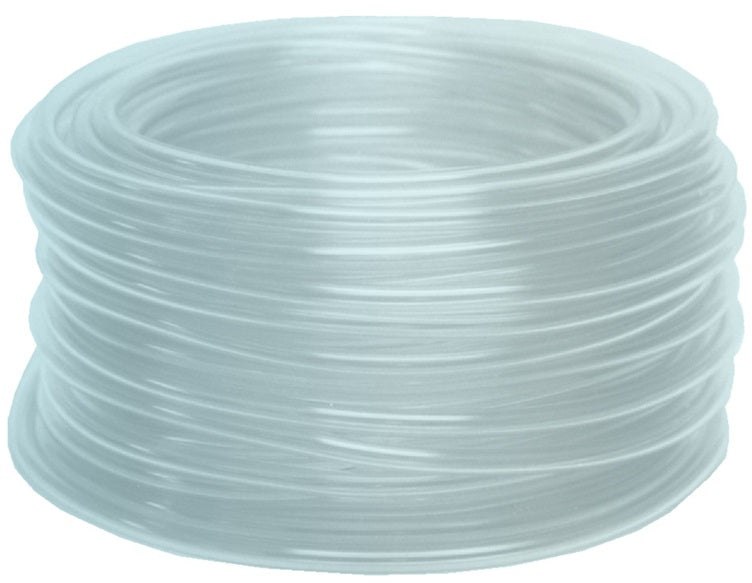

CL0305 by Dixon Valve | Domestic PVC Tubing | 5/16" OD | 3/16" ID | 100ft Length

CL0305 by Dixon Valve | Domestic PVC Tubing | 5/16" OD | 3/16" ID | 100ft Length

Save $3.14 Save $3.14
$39.13
$39.13 - $39.13
$39.13
$35.99
$35.99 - $35.99
$35.99

Dixon Valve
PVC Tubing | Domestic

For use with standard shank fittings in low-pressure liquid and pneumatic applications.

For non-critical hospital use such as suction and draining.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CL0305 Dixon
Series: Plastic Fittings and Tubing
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.1875in
Outer Diameter: 0.3125in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, NSF 51, RoHS Compliant, USP - Class VI
Features:
  • Made from non-toxic ingredients conforming to FDA standards.
  • Phthalate, DEHP, and BPA free.
  • Shipped in individually boxed bundles, sold only in lengths shown below.
Specifications:
  • Maximum temperature: 175°F (79°C)
Approvals:
  • Finished product meets USP class VI
  • NSF-51 certified
  • Reach and RoHS compliant
  • Raw materials meet califoria proposition 65
Clear PVC
Part Number		 Size Working Pressure
PSI @ 70°F (21°C)		 Length
O.D. I.D.
CL0305 5/16" 3/16" 106 PSI 100ft
CL0406 3/8" 1/4" 85 PSI 100ft
CL0408 1/2" 1/4" 141 PSI 100ft
CL0507 7/16" 5/16" 71 PSI 100ft
CL0608 1/2" 3/8" 70 PSI 100ft
CL0610 5/8" 3/8" 111 PSI 100ft
CL0810 5/8" 1/2" 52 PSI 100ft
CL0812 3/4" 1/2" 85 PSI 100ft
CL1014 7/8" 5/8" 71 PSI 100ft
CL1216 1" 3/4" 61 PSI 100ft
CL1620 1-1/4" 1" 42 PSI 100ft
CL2028-50 1-3/4" 1-1/4" 71 PSI 50ft
CL2432-50 2" 1-1/2" 61 PSI 50ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
