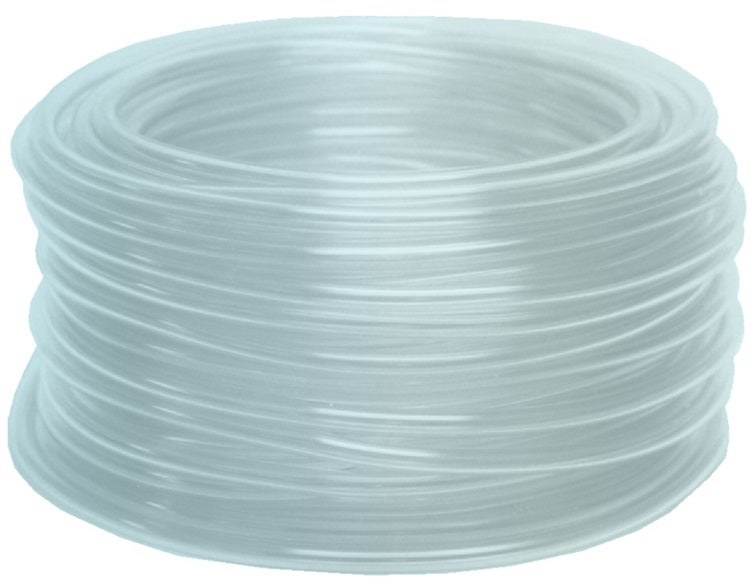

CL0610 by Dixon Valve | Domestic PVC Tubing | 5/8" OD | 3/8" ID | 100ft Length

CL0610 by Dixon Valve | Domestic PVC Tubing | 5/8" OD | 3/8" ID | 100ft Length

Save $16.26 Save $16.26
$146.30
$146.30 - $146.30
$146.30
$130.04
$130.04 - $130.04
$130.04

Dixon Valve
PVC Tubing | Domestic

For use with standard shank fittings in low-pressure liquid and pneumatic applications.

For non-critical hospital use such as suction and draining.
Specifications for Variant SKU: CL0610 Dixon
Series: Plastic Fittings and Tubing
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.375in
Outer Diameter: 0.625in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, NSF 51, RoHS Compliant, USP - Class VI
Features:
  • Made from non-toxic ingredients conforming to FDA standards.
  • Phthalate, DEHP, and BPA free.
  • Shipped in individually boxed bundles, sold only in lengths shown below.
Specifications:
  • Maximum temperature: 175°F (79°C)
Approvals:
  • Finished product meets USP class VI
  • NSF-51 certified
  • Reach and RoHS compliant
  • Raw materials meet califoria proposition 65
Clear PVC
Part Number		 Size Working Pressure
PSI @ 70°F (21°C)		 Length
O.D. I.D.
CL0305 5/16" 3/16" 106 PSI 100ft
CL0406 3/8" 1/4" 85 PSI 100ft
CL0408 1/2" 1/4" 141 PSI 100ft
CL0507 7/16" 5/16" 71 PSI 100ft
CL0608 1/2" 3/8" 70 PSI 100ft
CL0610 5/8" 3/8" 111 PSI 100ft
CL0810 5/8" 1/2" 52 PSI 100ft
CL0812 3/4" 1/2" 85 PSI 100ft
CL1014 7/8" 5/8" 71 PSI 100ft
CL1216 1" 3/4" 61 PSI 100ft
CL1620 1-1/4" 1" 42 PSI 100ft
CL2028-50 1-3/4" 1-1/4" 71 PSI 50ft
CL2432-50 2" 1-1/2" 61 PSI 50ft
