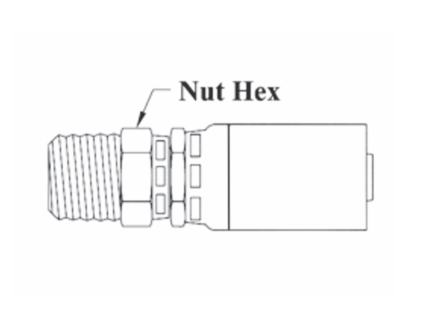

CS04-16X16 Couplamatic VARI-CRIMP Coupling - NPTF - Male Swivel - 1" Hose ID - 1-11-1/2 Thread (Old Part Number: 1609V)

CS04-16X16 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x 1-11-1/2 Thread Male Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 1609V | Pack of 10

Save $99.37 Save $99.37
$248.42
$248.42 - $248.42
$248.42
$149.05
$149.05 - $149.05
$149.05

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: CS04-16X16 Couplamatic | 10 |
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Vari-Crimp — Universal Crimp

CS04 Vari-Crimp — NPTF, Male Swivel, Straight

CS04 is the NPTF, Male Swivel, Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Swivel for installation purposes only. Leakage may occur at low pressure.
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Weatherhead U
CS04-4X2 1/4" 1/8" 1/8-27 9/16" 5/8" 462V HY04-02SP 04U-J02
CS04-4X4 1/4" 1/4" 1/4-18 9/16" 5/8" 406V HY04-04SP 04U-J04
CS04-4X6 1/4" 3/8" 3/8-18 11/16" 3/4" 466V HY04-06SP —
CS04-6X4 3/8" 1/4" 1/4-18 11/16" 3/4" 666V HY06-04SP 06U-J04
CS04-6X6 3/8" 3/8" 3/8-18 11/16" 3/4" 609V HY06-06SP 06U-J06
CS04-6X8 3/8" 1/2" 1/2-14 3/4" 7/8" 651V HY06-08SP 06U-J08
CS04-8X6 1/2" 3/8" 3/8-18 13/16" 3/4" 857V HY08-06SP 08U-J06
CS04-8X8 1/2" 1/2" 1/2-14 13/16" 7/8" 809V HY08-08SP 08U-J08
CS04-12X12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1209V HY12-12SP 12U-J12
CS04-16X16 1" 1" 1/11-1/2 1-3/8" 1-3/8" 1609V HY16-16SP 16U-J16

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
