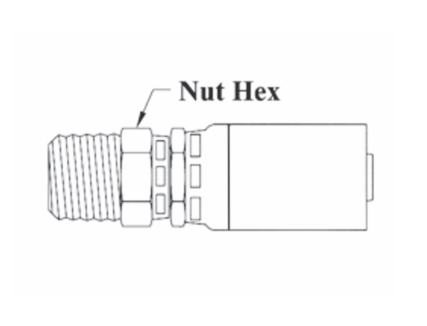

CS04-4X6 Couplamatic VARI-CRIMP Coupling - NPTF - Male Swivel - 1/4" Hose ID - 3/8-18 Thread (Old Part Number: 466V)

CS04-4X6 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 3/8-18 Thread Male Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 466V

Save $4.16

$10.40

$10.40 - $10.40

$10.40

$6.24

$6.24 - $6.24

$6.24

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Swivel

Specifications for Variant SKU: CS04-4X6 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPTF, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. Swivel for installation purposes only. Leakage may occur at low pressure.

Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Previous Part Number	Dayco HY	Weatherhead U
CS04-4X2	1/4"	1/8"	1/8-27	9/16"	5/8"	462V	HY04-02SP	04U-J02
CS04-4X4	1/4"	1/4"	1/4-18	9/16"	5/8"	406V	HY04-04SP	04U-J04
CS04-4X6	1/4"	3/8"	3/8-18	11/16"	3/4"	466V	HY04-06SP	-
CS04-6X4	3/8"	1/4"	1/4-18	11/16"	3/4"	666V	HY06-04SP	06U-J04
CS04-6X6	3/8"	3/8"	3/8-18	11/16"	3/4"	609V	HY06-06SP	06U-J06
CS04-6X8	3/8"	1/2"	1/2-14	3/4"	7/8"	651V	HY06-08SP	06U-J08
CS04-8X6	1/2"	3/8"	3/8-18	13/16"	3/4"	857V	HY08-06SP	08U-J06
CS04-8X8	1/2"	1/2"	1/2-14	13/16"	7/8"	809V	HY08-08SP	08U-J08
CS04-12X12	3/4"	3/4"	3/4-14	1-1/8"	1-1/4"	1209V	HY12-12SP	12U-J12
CS04-16X16	1"	1"	1/11-1/2	1-3/8"	1-3/8"	1609V	HY16-16SP	16U-J16
