CS09-4X4 Couplamatic VARI-CRIMP Coupling - JIC 37° - Female Solid - 1/4" Hose ID - 7/16x20 Thread (Old Part Number: 424V)

CS09-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 7/16x20 Thread JIC 37° Female Solid | Straight | Trivalent Zinc Plating | Replaces: 424V | Pack of 20

Save $41.63

$104.07

$104.07 - $104.07

$104.07

$62.44

$62.44 - $62.44

$62.44

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC 37° - Female Swivel

Package Quantity: 20 EA

Specifications for Variant SKU: CS09-4X4 Couplamatic \| 20 \|
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female JIC, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

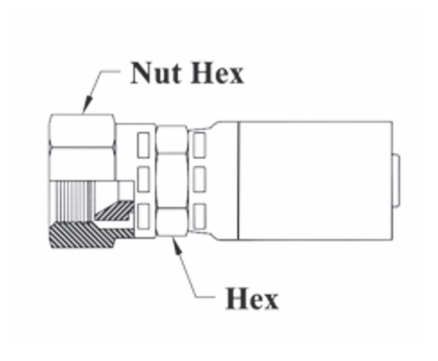

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS09-3X4	3/16"	7/16x20	1/4"	5/8"	9/16"	324V	-	-	-
CS09-4X4	1/4"	7/16x20	1/4"	9/16"	9/16"	424V	HY04-04FJ	106HY-4-4	04U-604
CS09-4X5	1/4"	1/2x20	5/16"	9/16"	5/8"	427V	HY04-05FJ	106HY-5-4	04U-605
CS09-4X6	1/4"	9/16x18	3/8"	9/16"	11/16"	433V	HY04-06FJ	106HY-6-4	04U-606
CS09-6X4	3/8"	7/16x20	1/4"	11/16"	9/16"	675V	HY06-04FJ	106HY-4-6	06U-604
CS09-6X6	3/8"	9/16x18	3/8"	11/16"	11/16"	627V	HY06-06FJ	106HY-6-6	06U-606
CS09-6X8	3/8"	3/4x16	1/2"	11/16"	7/8"	630V	HY06-08FJ	106HY-8-6	06U-608
CS09-6X10	3/8"	7/8x14	5/8"	7/8"	1"	657V	HY06-10FJ	106HY-10-6	06U-610
CS09-6X12	3/8"	1-1/16x12	3/4"	1"	1-1/4"	691V	HY06-12FJ	106HY-12-6	06U-612
CS09-8X6	1/2"	9/16x18	3/8"	13/16"	11/16"	842V	HY08-06FJ	106HY-6-8	08U-606
CS09-8X8	1/2"	3/4x16	1/2"	13/16"	7/8"	824V	HY08-08FJ	106HY-8-8	08U-608
CS09-8X10	1/2"	7/8x14	5/8"	7/8"	1"	827V	HY08-10FJ	106HY-10-8	08U-610
CS09-8X12	1/2"	1-1/16x12	3/4"	1-1/8"	1-1/4"	845V	HY08-12FJ	106HY-12-8	08U-612
CS09-8X16	1/2"	1-5/16x12	1"	1-1/4"	1-1/2"	863V	HY08-16FJ	106HY-16-8	08U-616
CS09-10X8	5/8"	3/4x16	1/2"	15/16"	7/8"	1024V	HY10-08FJ	106HY-8-10	10U-608
CS09-10X10	5/8"	7/8x14	5/8"	15/16"	1"	1027V	HY10-10FJ	106HY-10-10	10U-610
CS09-10X12	5/8"	1-1/16x12	3/4"	1-1/8"	1-1/4"	1021V	HY10-12FJ	106HY-12-10	10U-612
CS09-12X10	3/4"	7/8x14	5/8"	1-1/8"	1"	1230V	HY12-10FJ	106HY-10-12	12U-610
CS09-12X12	3/4"	1-1/16x12	3/4"	1-1/8"	1-1/4"	1221V	HY12-12FJ	106HY-12-12	12U-612
CS09-12X14	3/4"	1-3/16x12	7/8"	1-1/4"	1-1/2"	1245V	HY12-14FJ	106HY-14-12	12U-614
CS09-12X16	3/4"	1-5/16x12	1"	1-3/8"	1-1/2"	1236V	HY12-16FJ	106HY-16-12	12U-616
CS09-16X12	1"	1-1/16x12	3/4"	1-3/8"	1-1/4"	1621V	HY16-12FJ	106HY-12-16	16U-612
CS09-16X16	1"	1-5/16x12	1"	1-3/8"	1-1/2"	1618V	HY16-16FJ	106HY-16-16	16U-616
CS09-16X20	1"	1-5/8x12	1-1/4"	1-11/16"	2"	1624V	HY16-20FJ	106HY-20-16	16U-620
CS09-20X20	1-1/4"	1-5/8x12	1-1/4"	1-11/16"	2"	2005V	HY20-20FJ	106HY-20-20	20U-620

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
