CS09-8X16 Couplamatic VARI-CRIMP Coupling - JIC 37° - Female Solid - 1/2" Hose ID - 1-5/16x12 Thread (Old Part Number: 863V)

CS09-8X16 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 1-5/16x12 Thread JIC 37° Female Solid | Straight | Trivalent Zinc Plating | Replaces: 863V

Save $10.09 Save $10.09
$25.23
$25.23 - $25.23
$25.23
$15.14
$15.14 - $15.14
$15.14

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC 37° - Female Swivel
Specifications for Variant SKU: CS09-8X16 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

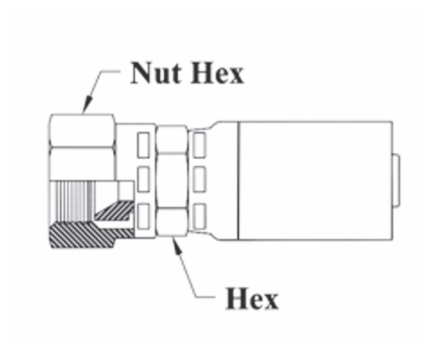

Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS09-3X4 3/16" 7/16x20 1/4" 5/8" 9/16" 324V - - -
CS09-4X4 1/4" 7/16x20 1/4" 9/16" 9/16" 424V HY04-04FJ 106HY-4-4 04U-604
CS09-4X5 1/4" 1/2x20 5/16" 9/16" 5/8" 427V HY04-05FJ 106HY-5-4 04U-605
CS09-4X6 1/4" 9/16x18 3/8" 9/16" 11/16" 433V HY04-06FJ 106HY-6-4 04U-606
CS09-6X4 3/8" 7/16x20 1/4" 11/16" 9/16" 675V HY06-04FJ 106HY-4-6 06U-604
CS09-6X6 3/8" 9/16x18 3/8" 11/16" 11/16" 627V HY06-06FJ 106HY-6-6 06U-606
CS09-6X8 3/8" 3/4x16 1/2" 11/16" 7/8" 630V HY06-08FJ 106HY-8-6 06U-608
CS09-6X10 3/8" 7/8x14 5/8" 7/8" 1" 657V HY06-10FJ 106HY-10-6 06U-610
CS09-6X12 3/8" 1-1/16x12 3/4" 1" 1-1/4" 691V HY06-12FJ 106HY-12-6 06U-612
CS09-8X6 1/2" 9/16x18 3/8" 13/16" 11/16" 842V HY08-06FJ 106HY-6-8 08U-606
CS09-8X8 1/2" 3/4x16 1/2" 13/16" 7/8" 824V HY08-08FJ 106HY-8-8 08U-608
CS09-8X10 1/2" 7/8x14 5/8" 7/8" 1" 827V HY08-10FJ 106HY-10-8 08U-610
CS09-8X12 1/2" 1-1/16x12 3/4" 1-1/8" 1-1/4" 845V HY08-12FJ 106HY-12-8 08U-612
CS09-8X16 1/2" 1-5/16x12 1" 1-1/4" 1-1/2" 863V HY08-16FJ 106HY-16-8 08U-616
CS09-10X8 5/8" 3/4x16 1/2" 15/16" 7/8" 1024V HY10-08FJ 106HY-8-10 10U-608
CS09-10X10 5/8" 7/8x14 5/8" 15/16" 1" 1027V HY10-10FJ 106HY-10-10 10U-610
CS09-10X12 5/8" 1-1/16x12 3/4" 1-1/8" 1-1/4" 1021V HY10-12FJ 106HY-12-10 10U-612
CS09-12X10 3/4" 7/8x14 5/8" 1-1/8" 1" 1230V HY12-10FJ 106HY-10-12 12U-610
CS09-12X12 3/4" 1-1/16x12 3/4" 1-1/8" 1-1/4" 1221V HY12-12FJ 106HY-12-12 12U-612
CS09-12X14 3/4" 1-3/16x12 7/8" 1-1/4" 1-1/2" 1245V HY12-14FJ 106HY-14-12 12U-614
CS09-12X16 3/4" 1-5/16x12 1" 1-3/8" 1-1/2" 1236V HY12-16FJ 106HY-16-12 12U-616
CS09-16X12 1" 1-1/16x12 3/4" 1-3/8" 1-1/4" 1621V HY16-12FJ 106HY-12-16 16U-612
CS09-16X16 1" 1-5/16x12 1" 1-3/8" 1-1/2" 1618V HY16-16FJ 106HY-16-16 16U-616
CS09-16X20 1" 1-5/8x12 1-1/4" 1-11/16" 2" 1624V HY16-20FJ 106HY-20-16 16U-620
CS09-20X20 1-1/4" 1-5/8x12 1-1/4" 1-11/16" 2" 2005V HY20-20FJ 106HY-20-20 20U-620

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
