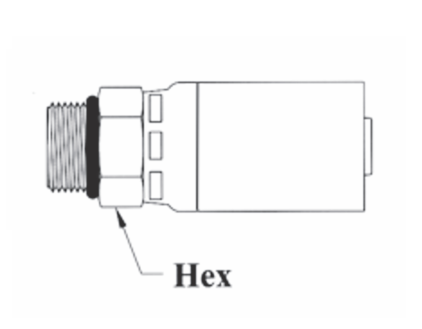

CS11-12X10 Couplamatic VARI-CRIMP Coupling - ORB - Male Solid - 3/4" Hose ID - 7/8x14 Thread (Old Part Number: 1248V)

CS11-10X10 by Couplamatic VARI-CRIMP Coupling | 5/8" Hose ID x 7/8x14 Thread ORB Male Solid | (Old Part Number: 1033V)

Save $5.49 Save $5.49
$13.72
$13.72 - $13.72
$13.72
$8.23
$8.23 - $8.23
$8.23

Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Solid
Specifications for Variant SKU: CS11-10X10 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Male O-Ring Boss, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS11-4X4 1/4" 7/16x20 1/4" 9/16" 451V HY04-04RA 105HY-4-4 04U-P04
CS11-4X5 1/4" 1/2x20 5/16" 5/8" 454V HY04-05RA 105HY-5-4 04U-P05
CS11-4X6 1/4" 9/16x18 3/8" 11/16" 448V HY04-06RA 105HY-6-4 04U-P06
CS11-6X6 3/8" 9/16x18 3/8" 11/16" 636V HY06-06RA 105HY-6-6 06U-P06
CS11-6X8 3/8" 3/4x16 1/2" 7/8" 639V HY06-08RA 105HY-8-6 06U-P08
CS11-6X10 3/8" 7/8x14 5/8" 1" 642V HY06-10RA 105HY-10-6 06U-P10
CS11-8X8 1/2" 3/4x16 1/2" 7/8" 830V HY08-08RA 105HY-8-8 08U-P08
CS11-8X10 1/2" 7/8x14 5/8" 1" 833V HY08-10RA 105HY-10-8 08U-P10
CS11-8X12 1/2" 1-1/16x12 3/4" 1-1/4" 860V HY08-12RA 105HY-12-8 08U-P12
CS11-10X8 5/8" 3/4x16 1/2" 15/16" 1030V HY10-08RA - 10U-P08
CS11-10X10 5/8" 7/8x14 5/8" 1" 1033V HY10-10RA 105HY-10-10 10U-P10
CS11-10X12 5/8" 1-1/16x12 3/4" 1-1/4" 1036V - - 10U-P12
CS11-12X10 3/4" 7/8x14 5/8" 1-1/8" 1248V HY12-10RA 105HY-10-12 12U-P10
CS11-12X12 3/4" 1-1/16x12 3/4" 1-1/4" 1227V HY12-12RA 105HY-12-12 12U-P12
CS11-16X16 1" 1-5/16x12 1" 1-1/2" 1630V HY16-16RA 105HY-16-16 16U-P16
