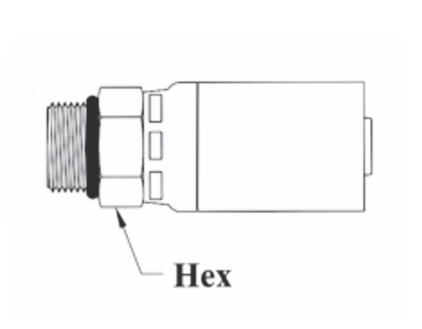

CS11-12X10 Couplamatic VARI-CRIMP Coupling - ORB - Male Solid - 3/4" Hose ID - 7/8x14 Thread (Old Part Number: 1248V)

CS11-12X10 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 7/8x14 Thread ORB Male Solid | Straight | Trivalent Zinc Plating | Replaces: 1248V

Save $8.63

$21.57

$21.57 - $21.57

$21.57

$12.94

$12.94 - $12.94

$12.94

Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Solid

Specifications for Variant SKU: CS11-12X10 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male O-Ring Boss, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS11-4X4	1/4"	7/16x20	1/4"	9/16"	451V	HY04-04RA	105HY-4-4	04U-P04
CS11-4X5	1/4"	1/2x20	5/16"	5/8"	454V	HY04-05RA	105HY-5-4	04U-P05
CS11-4X6	1/4"	9/16x18	3/8"	11/16"	448V	HY04-06RA	105HY-6-4	04U-P06
CS11-6X6	3/8"	9/16x18	3/8"	11/16"	636V	HY06-06RA	105HY-6-6	06U-P06
CS11-6X8	3/8"	3/4x16	1/2"	7/8"	639V	HY06-08RA	105HY-8-6	06U-P08
CS11-6X10	3/8"	7/8x14	5/8"	1"	642V	HY06-10RA	105HY-10-6	06U-P10
CS11-8X8	1/2"	3/4x16	1/2"	7/8"	830V	HY08-08RA	105HY-8-8	08U-P08
CS11-8X10	1/2"	7/8x14	5/8"	1"	833V	HY08-10RA	105HY-10-8	08U-P10
CS11-8X12	1/2"	1-1/16x12	3/4"	1-1/4"	860V	HY08-12RA	105HY-12-8	08U-P12
CS11-10X8	5/8"	3/4x16	1/2"	15/16"	1030V	HY10-08RA	-	10U-P08
CS11-10X10	5/8"	7/8x14	5/8"	1"	1033V	HY10-10RA	105HY-10-10	10U-P10
CS11-10X12	5/8"	1-1/16x12	3/4"	1-1/4"	1036V	-	-	10U-P12
CS11-12X10	3/4"	7/8x14	5/8"	1-1/8"	1248V	HY12-10RA	105HY-10-12	12U-P10
CS11-12X12	3/4"	1-1/16x12	3/4"	1-1/4"	1227V	HY12-12RA	105HY-12-12	12U-P12
CS11-16X16	1"	1-5/16x12	1"	1-1/2"	1630V	HY16-16RA	105HY-16-16	16U-P16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
