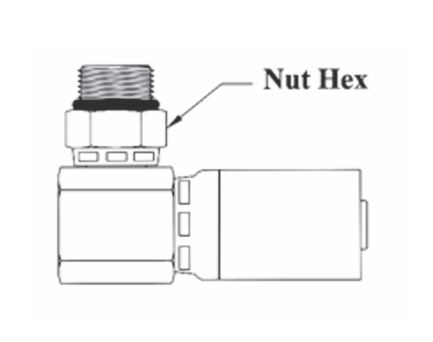

CS15-6X10 Couplamatic VARI-CRIMP Coupling - ORB - Male Swivel 90° - 3/8" Hose ID - 7/8x14 Thread (Old Part Number: 6242V)

CS15-6X10 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 7/8x14 Thread ORB Male Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 6242V

Save $10.66 Save $10.66
$26.65
$26.65 - $26.65
$26.65
$15.99
$15.99 - $15.99
$15.99

Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Swivel 90°
Specifications for Variant SKU: CS15-6X10 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male O-Ring Boss, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS15-6X6 3/8" 9/16x18 3/8" 3/4" 6278V HY06-06RC90 10LHY-6-6 06U-R66
CS15-6X8 3/8" 3/4x16 1/2" 7/8" 6245V HY06-08RC90 10LHY-8-6 06U-R68
CS15-6X10 3/8" 7/8x14 5/8" 1" 6242V - - 06U-R70
CS15-8X8 1/2" 3/4x16 1/2" 7/8" 8236V HY08-08RC90 10LHY-8-8 08U-R68
CS15-8X10 1/2" 7/8x14 5/8" 1" 8239V HY08-10RC90 10LHY-10-8 08U-R70
CS15-12X12 3/4" 1-1/16x12 3/4" 1-1/4" 12239V HY12-12RC90 10LHY-12-12 12U-R72
CS15-16X16 1" 1-5/16x12 1" 1-1/2" 16239V - - -

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
