CS15-8X10 Couplamatic VARI-CRIMP Coupling - ORB - Male Swivel 90° - 1/2" Hose ID - 7/8x14 Thread (Old Part Number: 8239V)

CS15-8X10 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 7/8x14 Thread ORB Male Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 8239V

Save $9.24

$23.10

$23.10 - $23.10

$23.10

$13.86

$13.86 - $13.86

$13.86

Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Swivel 90°

Specifications for Variant SKU: CS15-8X10 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Male O-Ring Boss, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

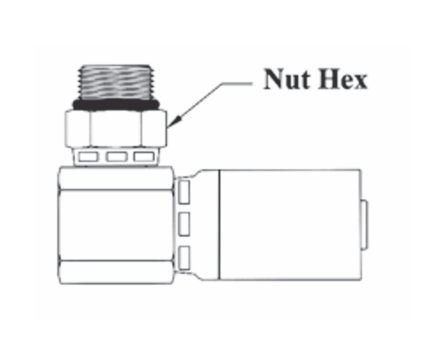

Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS15-6X6	3/8"	9/16x18	3/8"	3/4"	6278V	HY06-06RC90	10LHY-6-6	06U-R66
CS15-6X8	3/8"	3/4x16	1/2"	7/8"	6245V	HY06-08RC90	10LHY-8-6	06U-R68
CS15-6X10	3/8"	7/8x14	5/8"	1"	6242V	-	-	06U-R70
CS15-8X8	1/2"	3/4x16	1/2"	7/8"	8236V	HY08-08RC90	10LHY-8-8	08U-R68
CS15-8X10	1/2"	7/8x14	5/8"	1"	8239V	HY08-10RC90	10LHY-10-8	08U-R70
CS15-12X12	3/4"	1-1/16x12	3/4"	1-1/4"	12239V	HY12-12RC90	10LHY-12-12	12U-R72
CS15-16X16	1"	1-5/16x12	1"	1-1/2"	16239V	-	-	-

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
