CS16-4X4 Couplamatic VARI-CRIMP Coupling - NPTF - Female Swivel - 1/4" Hose ID - 1/4-18 Thread (Old Part Number: 484V)

CS16-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/4-18 Thread Female Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 484V

Save $7.23

$18.08

$18.08 - $18.08

$18.08

$10.85

$10.85 - $10.85

$10.85

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Female Swivel

Specifications for Variant SKU: CS16-4X4 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPTF, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. Swivel for installation purposes only. Leakage may occur at low pressure.

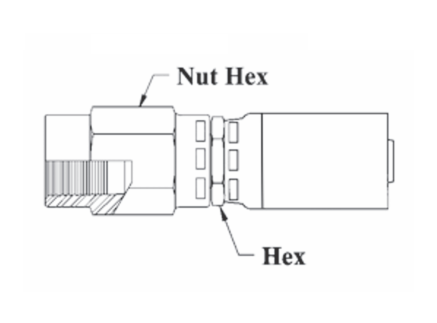

Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Previous Part Number	Parker HY	Weatherhead U
CS16-4X4	1/4"	1/4"	1/4-18	5/8"	3/4"	484V	-	04U-254
CS16-6X6	3/8"	3/8"	3/8-18	11/16"	7/8"	684V	-	06U-256
CS16-8X8	1/2"	1/2"	1/2-14	7/8"	1"	884V	-	08U-258
CS16-12X12	3/4"	3/4"	3/4-14	1-1/8"	1-1/4"	1284V	1S2HY-12-12	12U-262

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
