CS16-6X6 Couplamatic VARI-CRIMP Coupling - NPTF - Female Swivel - 3/8" Hose ID - 3/8-18 Thread (Old Part Number: 684V)

CS16-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 3/8-18 Thread Female Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 684V

Save $7.70 Save $7.70
$19.25
$19.25 - $19.25
$19.25
$11.55
$11.55 - $11.55
$11.55

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Female Swivel
Specifications for Variant SKU: CS16-6X6 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPTF, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Swivel for installation purposes only. Leakage may occur at low pressure.

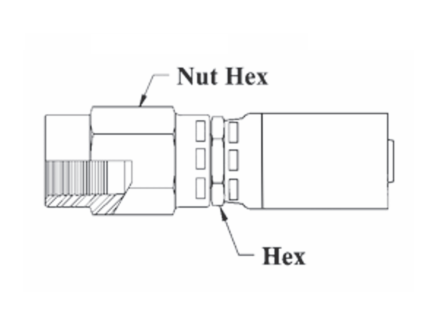

Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Parker HY Weatherhead U
CS16-4X4 1/4" 1/4" 1/4-18 5/8" 3/4" 484V - 04U-254
CS16-6X6 3/8" 3/8" 3/8-18 11/16" 7/8" 684V - 06U-256
CS16-8X8 1/2" 1/2" 1/2-14 7/8" 1" 884V - 08U-258
CS16-12X12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1284V 1S2HY-12-12 12U-262

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
