CS17-6X8 Couplamatic VARI-CRIMP Coupling - JIC 37° - 90° Female Swivel - 3/8" Hose ID - 3/4x16 Thread (Old Part Number: 6230V)

CS17-6X8 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 3/4x16 Thread Female Swivel JIC 37° | 90° Elbow | Trivalent Zinc Plating | Replaces: 6230V

Save $7.39 Save $7.39
$18.47
$18.47 - $18.47
$18.47
$11.08
$11.08 - $11.08
$11.08

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC 37° - 90° Female Swivel
Specifications for Variant SKU: CS17-6X8 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Vari-Crimp — Universal Crimp

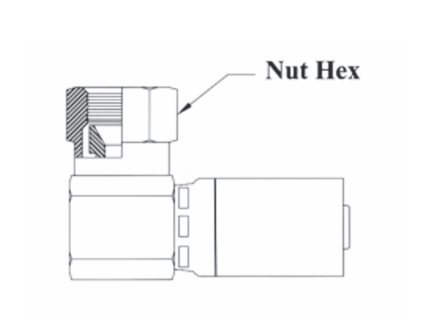

CS17 Vari-Crimp — JIC 37°, Female Swivel, 90° Elbow

CS17 is the JIC 37°, Female Swivel, 90° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?
Part Number Hose ID Thread Size Tube OD Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS17-4X4 1/4" 7/16x20 1/4" 5/8" 4224V — — 04U-554
CS17-6X6 3/8" 9/16x18 3/8" 11/16" 6227V HY06-06FJ90 193HY-6-6 06U-556
CS17-6X8 3/8" 3/4x16 1/2" 7/8" 6230V HY06-08FJ90 193HY-8-6 —
CS17-8X8 1/2" 3/4x16 1/2" 7/8" 8224V HY08-08FJ90 193HY-8-8 08U-558
CS17-8X10 1/2" 7/8x14 5/8" 1" 8227V HY08-10FJ90 — 08U-560
i
JIC Seat & Thread Only. The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
