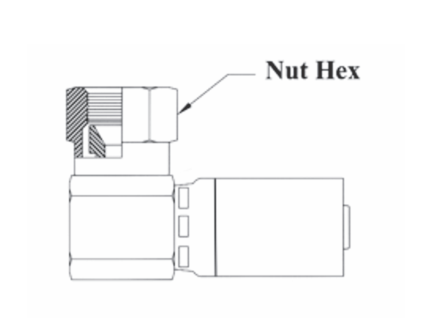

CS17-8X10 Couplamatic VARI-CRIMP Coupling - JIC 37° - 90° Female Swivel - 1/2" Hose ID - 7/8x14 Thread (Old Part Number: 8227V)

CS17-8X10 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 7/8x14 Thread Female Swivel JIC 37° | 90° Elbow | Trivalent Zinc Plating | Replaces: 8227V

Save $1.58 Save $1.58
$14.20
$14.20 - $14.20
$14.20
$12.62
$12.62 - $12.62
$12.62

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC 37° - 90° Female Swivel
Specifications for Variant SKU: CS17-8X10 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS17-4X4 1/4" 7/16x20 1/4" 5/8" 4224V - - 04U-554
CS17-6X6 3/8" 9/16x18 3/8" 11/16" 6227V HY06-06FJ90 193HY-6-6 06U-556
CS17-6X8 3/8" 3/4x16 1/2" 7/8" 6230V HY06-08FJ90 193HY-8-6 -
CS17-8X8 1/2" 3/4x16 1/2" 7/8" 8224V HY08-08FJ90 193HY-8-8 08U-558
CS17-8X10 1/2" 7/8x14 5/8" 1" 8227V HY08-10FJ90 - 08U-560

* JIC Seat & Thread Only.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
