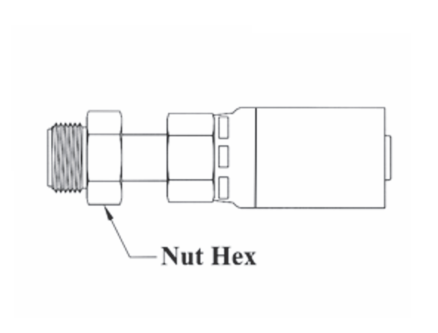

CS18-4X3 Couplamatic VARI-CRIMP Coupling - Male Inverted Flare - 1/4" Hose ID - 3/8x24 Thread (Old Part Number: 4169V)

CS18-4X3 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 3/8x24 Thread Male Inverted Flare | Straight | Trivalent Zinc Plating | Replaces: 4169V

Save $4.92

$12.30

$12.30 - $12.30

$12.30

$7.38

$7.38 - $7.38

$7.38

Couplamatic Systems Inc.
Vari-Crimp Couplings - Male Inverted Flare

Specifications for Variant SKU: CS18-4X3 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/16in Male Inverted Flare, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS18-4X3	1/4"	3/8x24	3/16"	3/8"	4169V	HY04-03MF	128HY-3-4	04U-B03
CS18-4X4	1/4"	7/16x24	1/4"	7/16"	4106V	HY04-04MF	128HY-4-4	04U-B04
CS18-4X5	1/4"	1/2x20	5/16"	1/2"	4133V	HY04-05MF	128HY-5-4	04U-B05
CS18-6X4	3/8"	7/16x24	1/4"	7/16"	6175V	HY06-04MF	-	06U-B04
CS18-6X5	3/8"	1/2x20	5/16"	1/2"	6109V	HY06-05MF	128HY-5-6	06U-B05
CS18-6X6	3/8"	5/8x18	3/8"	5/8"	6136V	HY06-06MF	128HY-6-6	06U-B06
CS18-6X7	3/8"	11/16x18	7/16"	11/16"	6193V	HY06-07MF	128HY-7-6	06U-B07
CS18-8X8	1/2"	3/4x18	1/2"	3/4"	8109V	HY08-08MF	128HY-8-8	08U-B08
CS18-8X10	1/2"	7/8x18	5/8"	7/8"	8136V	-	-	08U-B10

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
