CS18-6X5 Couplamatic VARI-CRIMP Coupling - Male Inverted Flare - 3/8" Hose ID - 1/2x20 Thread (Old Part Number: 6109V)

CS18-6X5 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 1/2x20 Thread Male Inverted Flare | Straight | Trivalent Zinc Plating | Replaces: 6109V

Save $4.72 Save $4.72
$11.80
$11.80 - $11.80
$11.80
$7.08
$7.08 - $7.08
$7.08

Couplamatic Systems Inc.
Vari-Crimp Couplings - Male Inverted Flare
Specifications for Variant SKU: CS18-6X5 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Male Inverted Flare, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

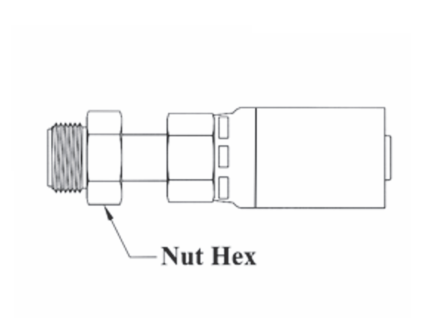

Part Number Hose ID Thread Size Tube OD Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS18-4X3 1/4" 3/8x24 3/16" 3/8" 4169V HY04-03MF 128HY-3-4 04U-B03
CS18-4X4 1/4" 7/16x24 1/4" 7/16" 4106V HY04-04MF 128HY-4-4 04U-B04
CS18-4X5 1/4" 1/2x20 5/16" 1/2" 4133V HY04-05MF 128HY-5-4 04U-B05
CS18-6X4 3/8" 7/16x24 1/4" 7/16" 6175V HY06-04MF - 06U-B04
CS18-6X5 3/8" 1/2x20 5/16" 1/2" 6109V HY06-05MF 128HY-5-6 06U-B05
CS18-6X6 3/8" 5/8x18 3/8" 5/8" 6136V HY06-06MF 128HY-6-6 06U-B06
CS18-6X7 3/8" 11/16x18 7/16" 11/16" 6193V HY06-07MF 128HY-7-6 06U-B07
CS18-8X8 1/2" 3/4x18 1/2" 3/4" 8109V HY08-08MF 128HY-8-8 08U-B08
CS18-8X10 1/2" 7/8x18 5/8" 7/8" 8136V - - 08U-B10

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
