CS25-12X12 Couplamatic VARI-CRIMP Coupling - JIC Seat - 45° Female Swivel - 3/4" Hose ID - 1-1/16x12 Thread (Old Part Number: 12612V)

CS25-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 12612V | Pack of 5

Save $11.05

$99.41

$99.41 - $99.41

$99.41

$88.36

$88.36 - $88.36

$88.36

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 45° Female Swivel

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: CS25-12X12 Couplamatic \| 5 \|
Series:	VARI-CRIMP Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

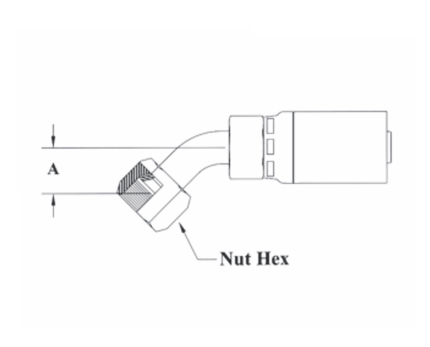

Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS25-4X4	1/4"	7/16x20	1/4"	0.47"	9/16"	4127V	HY04-04FJ45T	137HY-4-4	04U-684
CS25-4X5	1/4"	1/2x20	5/16"	0.53"	5/8"	4154V	HY04-05FJ45T	137HY-5-4	04U-685
CS25-4X6*	1/4"	9/16x18	3/8"	0.59"	11/16"	4181V*	-	-	04U-686
CS25-6X4	3/8"	7/16x20	1/4"	0.47	9/16"	6184V	-	-	06U-684
CS25-6X5	3/8"	1/2x20	5/16"	0.53"	5/8"	6130V	-	-	-
CS25-6X6*	3/8"	9/16x18	3/8"	0.59"	11/16"	6157V*	HY06-06FJ45T	137HY-6-6	06U-686
CS25-6X8	3/8"	3/4x16	1/2"	0.71"	7/8"	6169V	HY06-08FJ45T	137HY-8-6	06U-688
CS25-8X8	1/2"	3/4x16	1/2"	0.71"	7/8"	8130V	HY08-08FJ45T	137HY-8-8	08U-688
CS25-8X10	1/2"	7/8x14	5/8"	0.84"	1"	8157V	HY08-10FJ45T	137HY-10-8	08U-690
CS25-10X10	5/8"	7/8x14	5/8"	0.68"	1"	1057V	HY10-10FJ45T	137HY-10-10	10U-690
CS25-10X12*	5/8"	1-1/16x12	3/4"	0.78"	1-1/4"	1063V*	HY10-12FJ45T	-	10U-692
CS25-12X12*	3/4"	1-1/16x12	3/4"	1.12"	1-1/4"	12612V*	HY12-12FJ45T	137HY-12-12	12U-692
CS25-12X16*	3/4"	1-5/16x12	1"	1.15"	1-1/2"	12663V*	-	-	12U-696
CCS25-16X16*	1"	1-5/16x12	1"	1.15"	1-1/2"	16612V*	HY16-16FJ45T	137HY-16-16	16U-696
CS25-20X20	1-1/4"	1-5/8x12	1-1/4"	1.69"	2"	20697V	-	-	-

* JIC Seat & Thread Only.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
