CS25-4X6 Couplamatic VARI-CRIMP Coupling - JIC Seat - 45° Female Swivel - 1/4" Hose ID - 9/16x18 Thread (Old Part Number: 4181V)

CS25-4X6 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 9/16x18 Thread Female Swivel JIC Seat | 45° Elbow | Trivalent Zinc Plating | Replaces: 4181V

Save $4.95 Save $4.95
$12.38
$12.38 - $12.38
$12.38
$7.43
$7.43 - $7.43
$7.43

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 45° Female Swivel
Specifications for Variant SKU: CS25-4X6 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female JIC, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

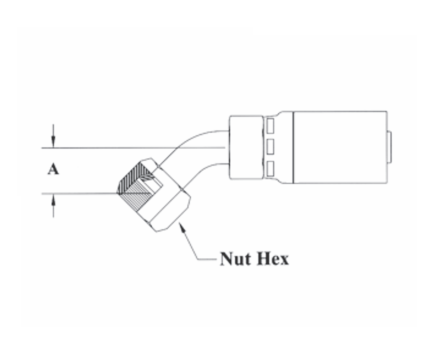

Part Number Hose ID Thread Size Tube OD A Drop Inches Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS25-4X4 1/4" 7/16x20 1/4" 0.47" 9/16" 4127V HY04-04FJ45T 137HY-4-4 04U-684
CS25-4X5 1/4" 1/2x20 5/16" 0.53" 5/8" 4154V HY04-05FJ45T 137HY-5-4 04U-685
CS25-4X6* 1/4" 9/16x18 3/8" 0.59" 11/16" 4181V* - - 04U-686
CS25-6X4 3/8" 7/16x20 1/4" 0.47 9/16" 6184V - - 06U-684
CS25-6X5 3/8" 1/2x20 5/16" 0.53" 5/8" 6130V - - -
CS25-6X6* 3/8" 9/16x18 3/8" 0.59" 11/16" 6157V* HY06-06FJ45T 137HY-6-6 06U-686
CS25-6X8 3/8" 3/4x16 1/2" 0.71" 7/8" 6169V HY06-08FJ45T 137HY-8-6 06U-688
CS25-8X8 1/2" 3/4x16 1/2" 0.71" 7/8" 8130V HY08-08FJ45T 137HY-8-8 08U-688
CS25-8X10 1/2" 7/8x14 5/8" 0.84" 1" 8157V HY08-10FJ45T 137HY-10-8 08U-690
CS25-10X10 5/8" 7/8x14 5/8" 0.68" 1" 1057V HY10-10FJ45T 137HY-10-10 10U-690
CS25-10X12* 5/8" 1-1/16x12 3/4" 0.78" 1-1/4" 1063V* HY10-12FJ45T - 10U-692
CS25-12X12* 3/4" 1-1/16x12 3/4" 1.12" 1-1/4" 12612V* HY12-12FJ45T 137HY-12-12 12U-692
CS25-12X16* 3/4" 1-5/16x12 1" 1.15" 1-1/2" 12663V* - - 12U-696
CCS25-16X16* 1" 1-5/16x12 1" 1.15" 1-1/2" 16612V* HY16-16FJ45T 137HY-16-16 16U-696
CS25-20X20 1-1/4" 1-5/8x12 1-1/4" 1.69" 2" 20697V - - -

* JIC Seat & Thread Only.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
