CS27-10X10 Couplamatic VARI-CRIMP Coupling - JIC/SAE Dual Seat - 90° Female Swivel Long Drop - 5/8" Hose ID - 7/8x14 Thread (Old Part Number: 1069V)

CS27-10X10 by Couplamatic | VARI-CRIMP Coupling | 5/8" Hose ID x 7/8x14 Thread JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 1069V

Save $10.11 Save $10.11
$25.27
$25.27 - $25.27
$25.27
$15.16
$15.16 - $15.16
$15.16

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel Long Drop
Specifications for Variant SKU: CS27-10X10 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 5/8in Hose Barb, 5/8in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

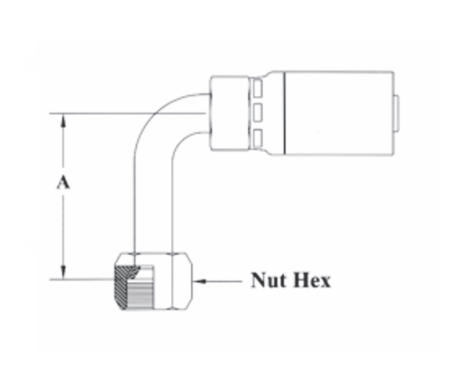

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS27-4X4 1/4" 7/16x20 1/4" 1.80" 9/16" 4163V HY04-04FJ90TL 141HY-4-4 04U-644
CS27-4X5 1/4" 1/2x20 5/16" 1.80 5/8" 4166V - - -
CS27-4X6* 1/4" 9/16x18 3/8" 2.18 11/16" 4178V* HY04-06FJ90TL 141HY-6-4 -
CS27-6X4 3/8" 7/16x20 1/4" 1.80 9/16" 6190V - - 06U-644
CS27-6X6* 3/8" 9/16x18 3/8" 2.18 11/16" 6166V* HY06-06FJ90TL 141HY-6-6 06U-646
CS27-6X8 3/8" 3/4x16 1/2" 2.50 7/8" 6124V - - 06U-648
CS27-8X8 1/2" 3/4x16 1/2" 2.50 7/8" 8163V HY08-08FJ90TL 141HY-8-8 08U-648
CS27-8X10 1/2" 7/8x14 5/8" 2.75 1" 8166V HY08-10FJ90TL 141HY-10-8 08U-650
CS27-10X10 5/8" 7/8x14 5/8" 2.75 1" 1069V - - -
CS27-12X12 3/4" 1-1/16x12 3/4" 3.73 1-1/4" 12657V* HY12-12FJ90TL 141HY-12-12 12U-652
CS27-16X16* 1" 1-5/16x12 1" 4.50 1-1/2" 16657V* HY16-16FJ90TL 141HY-16-16 16U-656L

* JIC Seat & Thread Only.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
