CS27-8X8 Couplamatic VARI-CRIMP Coupling - JIC/SAE Dual Seat - 90° Female Swivel Long Drop - 1/2" Hose ID - 3/4x16 Thread (Old Part Number: 8163V)

CS27-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 3/4x16 Thread JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 8163V | Pack of 5

Save $37.27

$93.18

$93.18 - $93.18

$93.18

$55.91

$55.91 - $55.91

$55.91

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel Long Drop

Package Quantity: 5 EA

Specifications for Variant SKU: CS27-8X8 Couplamatic \| 5 \|
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Hose Barb, 1/2in Female SAE 45 Flare
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

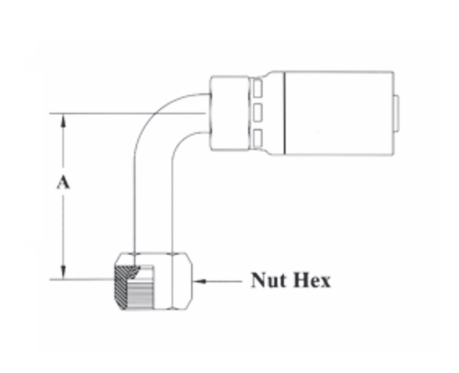

Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS27-4X4	1/4"	7/16x20	1/4"	1.80"	9/16"	4163V	HY04-04FJ90TL	141HY-4-4	04U-644
CS27-4X5	1/4"	1/2x20	5/16"	1.80	5/8"	4166V	-	-	-
CS27-4X6*	1/4"	9/16x18	3/8"	2.18	11/16"	4178V*	HY04-06FJ90TL	141HY-6-4	-
CS27-6X4	3/8"	7/16x20	1/4"	1.80	9/16"	6190V	-	-	06U-644
CS27-6X6*	3/8"	9/16x18	3/8"	2.18	11/16"	6166V*	HY06-06FJ90TL	141HY-6-6	06U-646
CS27-6X8	3/8"	3/4x16	1/2"	2.50	7/8"	6124V	-	-	06U-648
CS27-8X8	1/2"	3/4x16	1/2"	2.50	7/8"	8163V	HY08-08FJ90TL	141HY-8-8	08U-648
CS27-8X10	1/2"	7/8x14	5/8"	2.75	1"	8166V	HY08-10FJ90TL	141HY-10-8	08U-650
CS27-10X10	5/8"	7/8x14	5/8"	2.75	1"	1069V	-	-	-
CS27-12X12	3/4"	1-1/16x12	3/4"	3.73	1-1/4"	12657V*	HY12-12FJ90TL	141HY-12-12	12U-652
CS27-16X16*	1"	1-5/16x12	1"	4.50	1-1/2"	16657V*	HY16-16FJ90TL	141HY-16-16	16U-656L

* JIC Seat & Thread Only.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
