CS32-12X16 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 3/4" Hose ID - 1-7/16x12 Thread (Old Part Number: 12A36V)

CS32-12X16 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-7/16x12 Thread O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 12A36V

Save $3.98 Save $3.98
$35.82
$35.82 - $35.82
$35.82
$31.84
$31.84 - $31.84
$31.84

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel
Specifications for Variant SKU: CS32-12X16 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

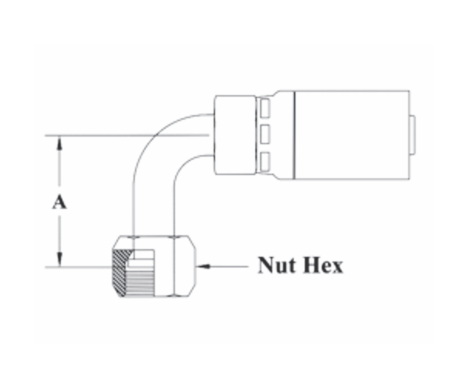

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS32-4X4 1/4" 9/16x18 1/4" 0.80 11/16" 4A24V HY04-04OF90T 1J9HY-4-4 04U-A24
CS32-4X6 1/4" 11/16x16 3/8" 0.90 13/16" 4A26V HY04-06OF90T 1J9HY-6-4 04U-A26
CS32-6X4 3/8" 9/16x18 1/4" 0.78 11/16" 6A24V HY06-04OF90T 1J9HY-4-6 06U-A24
CS32-6X6 3/8" 11/16x16 3/8" 0.90 13/16" 6A26V HY06-06OF90T 1J9HY-6-6 06U-A26
CS32-6X8 3/8" 13/16x16 1/2" 1.15 15/16" 6A28V HY06-08OF90T 1J9HY-8-6 06U-A28
CS32-8X6 1/2" 11/16x16 3/8" 0.90 13/16" 8A26V HY08-06OF90T 1J9HY-6-8 08U-A26
CS32-8X8 1/2" 13/16x16 1/2" 1.15 15/16" 8A28V HY08-08OF90T 1J9HY-8-8 08U-A28
CS32-8X10 1/2" 1x14 5/8" 1.27 1-1/8" 8A30V HY08-10OF90T 1J9HY-10-8 08U-A30
CS32-8X12 1/2" 1-3/16x12 3/4" 1.88 1-3/8" 8A32V - - -
CS32-10X10 5/8" 1x14 5/8" 1.27 1-1/8" 10A30V HY10-10OF90T 1J9HY-10-10 10U-A30
CS32-10X12 5/8" 1-3/16x12 3/4" 1.88 1-3/8" 10A32V HY10-12OF90T 1J9HY-12-10 10U-A32
CS32-12X10 3/4" 1x14 5/8" 1.27 1-1/8" 12A30V HY12-10OF90T 1J9HY-10-12 12U-A30
CS32-12X12 3/4" 1-3/16x12 3/4" 1.88 1-3/8" 12A32V HY12-12OF90T 1J9HY-12-12 12U-A32
CS32-12X16 3/4" 1-7/16x12 1" 2.20 1-5/8" 12A36V - - 12U-A36
CS32-16X16 1" 1-7/16x12 1" 2.20 1-5/8" 16A36V HY16-16OF90T 1J9HY-16-16 16U-A36
CS32-16X20 1" 1-11/16x12 1-1/4" 2.52 1-7/8" 16A40V - - -
CS32-20X20 1-1/4" 1-11/16x12 1-1/4" 2.51 1-7/8" 20A40V HY20-20OF90T - 20U-A40

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
