CS32-4X6 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 1/4" Hose ID - 11/16x16 Thread (Old Part Number: 4A26V)

CS32-4X6 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 11/16x16 Thread O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 4A26V | Pack of 5

Save $5.93

$53.37

$53.37 - $53.37

$53.37

$47.44

$47.44 - $47.44

$47.44

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: CS32-4X6 Couplamatic \| 5 \|
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

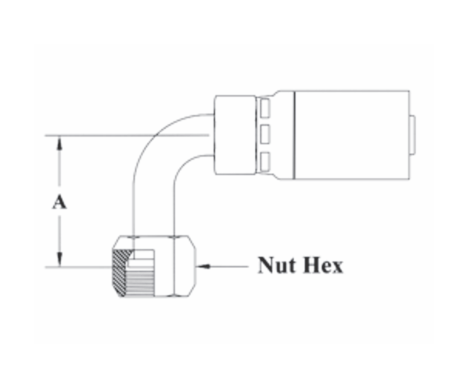

Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS32-4X4	1/4"	9/16x18	1/4"	0.80	11/16"	4A24V	HY04-04OF90T	1J9HY-4-4	04U-A24
CS32-4X6	1/4"	11/16x16	3/8"	0.90	13/16"	4A26V	HY04-06OF90T	1J9HY-6-4	04U-A26
CS32-6X4	3/8"	9/16x18	1/4"	0.78	11/16"	6A24V	HY06-04OF90T	1J9HY-4-6	06U-A24
CS32-6X6	3/8"	11/16x16	3/8"	0.90	13/16"	6A26V	HY06-06OF90T	1J9HY-6-6	06U-A26
CS32-6X8	3/8"	13/16x16	1/2"	1.15	15/16"	6A28V	HY06-08OF90T	1J9HY-8-6	06U-A28
CS32-8X6	1/2"	11/16x16	3/8"	0.90	13/16"	8A26V	HY08-06OF90T	1J9HY-6-8	08U-A26
CS32-8X8	1/2"	13/16x16	1/2"	1.15	15/16"	8A28V	HY08-08OF90T	1J9HY-8-8	08U-A28
CS32-8X10	1/2"	1x14	5/8"	1.27	1-1/8"	8A30V	HY08-10OF90T	1J9HY-10-8	08U-A30
CS32-8X12	1/2"	1-3/16x12	3/4"	1.88	1-3/8"	8A32V	-	-	-
CS32-10X10	5/8"	1x14	5/8"	1.27	1-1/8"	10A30V	HY10-10OF90T	1J9HY-10-10	10U-A30
CS32-10X12	5/8"	1-3/16x12	3/4"	1.88	1-3/8"	10A32V	HY10-12OF90T	1J9HY-12-10	10U-A32
CS32-12X10	3/4"	1x14	5/8"	1.27	1-1/8"	12A30V	HY12-10OF90T	1J9HY-10-12	12U-A30
CS32-12X12	3/4"	1-3/16x12	3/4"	1.88	1-3/8"	12A32V	HY12-12OF90T	1J9HY-12-12	12U-A32
CS32-12X16	3/4"	1-7/16x12	1"	2.20	1-5/8"	12A36V	-	-	12U-A36
CS32-16X16	1"	1-7/16x12	1"	2.20	1-5/8"	16A36V	HY16-16OF90T	1J9HY-16-16	16U-A36
CS32-16X20	1"	1-11/16x12	1-1/4"	2.52	1-7/8"	16A40V	-	-	-
CS32-20X20	1-1/4"	1-11/16x12	1-1/4"	2.51	1-7/8"	20A40V	HY20-20OF90T	-	20U-A40

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
