CS33-12X12 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop - 3/4" Hose ID - 1-3/16x12 Thread (Old Part Number: 12A72V)

CS33-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-3/16x12 Thread O-Ring Face Seal | ORF Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 12A72V

Save $2.33 Save $2.33
$20.96
$20.96 - $20.96
$20.96
$18.63
$18.63 - $18.63
$18.63

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop
Specifications for Variant SKU: CS33-12X12 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

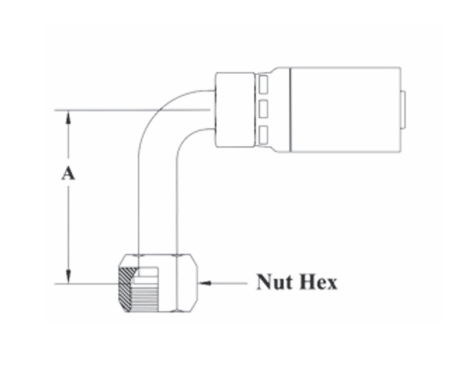

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS33-4X4 1/4" 9/16x18 1/4" 1.80 11/16" 4A64V HY04-04OF90TL 1J1HY-4-4 04U-A64
CS33-4X6 1/4" 11/16x16 3/8" 2.31 13/16" 4A66V - - 04U-A66
CS33-6X6 3/8" 11/16x16 3/8" 2.13 13/16" 6A66V HY06-06OF90TL 1J1HY-6-6 06U-A66
CS33-6X8 3/8" 13/16x16 1/2" 2.51 15/16" 6A68V HY06-08OF90TL 1J1HY-8-6 06U-A68
CS33-8X8 1/2" 13/16x16 1/2" 2.51 15/16" 8A68V HY08-08OF90TL 1J1HY-8-8 08U-A68
CS33-8X10 1/2" 1x14 5/8" 2.76 1-1/8" 8A70V HY08-10OF90TL 1J1HY-10-8 08U-A70
CS33-10X10 5/8" 1x14 5/8" 2.76 1-1/8" 10A70V HY10-10OF90TL 1J1HY-10-8 10U-A70
CS33-12X12 3/4" 1-3/16x12 3/4" 3.78 1-3/8" 12A72V HY12-12OF90TL 1J1HY-12-12 12U-A72
CS33-16X16 1" 1-7/16x12 1" 4.50 1-5/8" 16A76V HY16-16OF90TL 1J1HY-16-16 16U-A76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
