CS33-4X6 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop - 1/4" Hose ID - 11/16x16 Thread (Old Part Number: 4A66V)

CS33-4X6 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 11/16x16 Thread O-Ring Face Seal | ORF Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 4A66V

Save $1.21

$10.91

$10.91 - $10.91

$10.91

$9.70

$9.70 - $9.70

$9.70

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop

Quantity

Specifications for Variant SKU: CS33-4X6 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

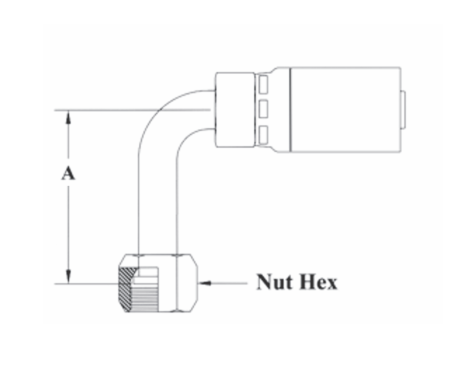

Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS33-4X4	1/4"	9/16x18	1/4"	1.80	11/16"	4A64V	HY04-04OF90TL	1J1HY-4-4	04U-A64
CS33-4X6	1/4"	11/16x16	3/8"	2.31	13/16"	4A66V	-	-	04U-A66
CS33-6X6	3/8"	11/16x16	3/8"	2.13	13/16"	6A66V	HY06-06OF90TL	1J1HY-6-6	06U-A66
CS33-6X8	3/8"	13/16x16	1/2"	2.51	15/16"	6A68V	HY06-08OF90TL	1J1HY-8-6	06U-A68
CS33-8X8	1/2"	13/16x16	1/2"	2.51	15/16"	8A68V	HY08-08OF90TL	1J1HY-8-8	08U-A68
CS33-8X10	1/2"	1x14	5/8"	2.76	1-1/8"	8A70V	HY08-10OF90TL	1J1HY-10-8	08U-A70
CS33-10X10	5/8"	1x14	5/8"	2.76	1-1/8"	10A70V	HY10-10OF90TL	1J1HY-10-8	10U-A70
CS33-12X12	3/4"	1-3/16x12	3/4"	3.78	1-3/8"	12A72V	HY12-12OF90TL	1J1HY-12-12	12U-A72
CS33-16X16	1"	1-7/16x12	1"	4.50	1-5/8"	16A76V	HY16-16OF90TL	1J1HY-16-16	16U-A76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
