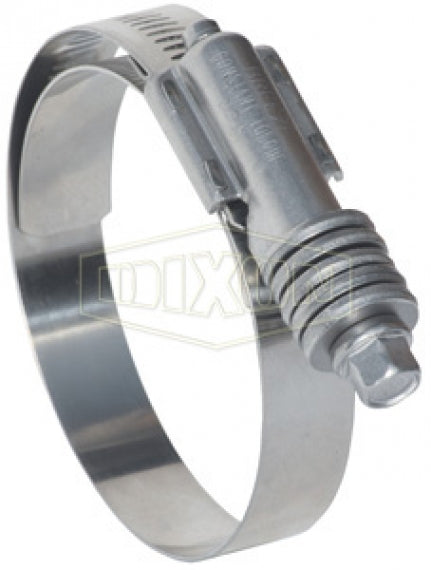

CT250L by Dixon Valve | Style CT | Constant Torque Worm Gear Clamp | 5/8" Band Width | Hose OD Range: from 1-3/4" to 2-5/8" | 300 Stainless Steel Band | Carbon Steel Screw

CT250L by Dixon Valve | Style CT | Constant Torque Worm Gear Clamp | 5/8" Band Width | Hose OD Range: from 1-3/4" to 2-5/8" | 300 Stainless Steel Band | Carbon Steel Screw

Save $1.80 Save $1.80
$16.23
$16.23 - $16.23
$16.23
$14.43
$14.43 - $14.43
$14.43

Dixon Valve
Constant Torque Worm Gear Clamp | Style CT

A patented Belleville spring mechanism permits the clamp to automatically increase or decrease its own diameter due to changes in operational or environmental temperatures.
Specifications for Variant SKU: CT250L Dixon
Series: Style CT
Material(s): 300 Stainless Steel, Carbon Steel
Clamp Width: 0.625
Minimum Clamp I.D.: 1.75
Maximum Clamp I.D.: 2.625
Construction:
  • 3/8" hex, carbon steel screw.
  • 5/8" wide 300 stainless steel band.
Part Number Band Width Hose OD
From To
CT175L 5/8" 1" 1-3/4"
CT200L 5/8" 1-1/4" 2-1/8"
CT250L 5/8" 1-3/4" 2-5/8"
CT300L 5/8" 2-1/4" 3-1/8"
CT350L 5/8" 2-3/4" 3-5/8"
CT400L 5/8" 3-1/4" 4-1/8"
CT450L 5/8" 3-3/4" 4-5/8"
CT500L 5/8" 4-1/4" 5-1/8"
CT550L 5/8" 4-3/4" 5-5/8"
CT600L 5/8" 5-1/4" 6-1/8"
CT650L 5/8" 5-3/4" 6-5/8"
CT700L 5/8" 6-1/4" 7-1/8"
CT750L 5/8" 6-3/4" 7-5/8"
CT800L 5/8" 7-1/4" 8-1/8"
CT850L 5/8" 7-3/4" 8-5/8"
CT900L 5/8" 8-1/4" 9-1/8"
CT950L 5/8" 8-3/4" 9-5/8"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
