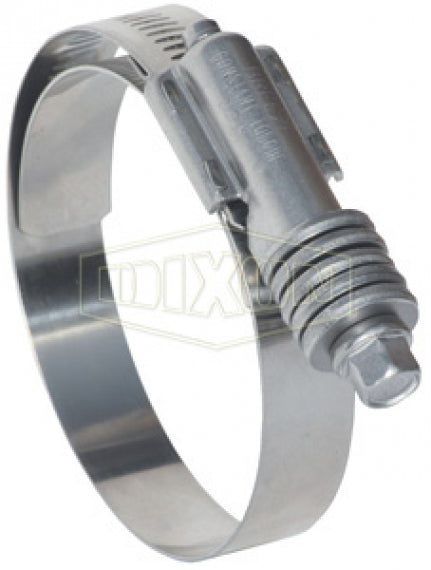

CT850L by Dixon Valve | Style CT | Constant Torque Worm Gear Clamp | 5/8" Band Width | Hose OD Range: from 7-3/4" to 8-5/8" | 300 Stainless Steel Band | Carbon Steel Screw

Save $11.68

$29.20

$29.20 - $29.20

$29.20

$17.52

$17.52 - $17.52

$17.52

Dixon Valve
Constant Torque Worm Gear Clamp | Style CT

A patented Belleville spring mechanism permits the clamp to automatically increase or decrease its own diameter due to changes in operational or environmental temperatures.

Specifications for Variant SKU: CT850L Dixon
Series:	Style CT
Material(s):	300 Stainless Steel, Carbon Steel
Clamp Width:	0.625
Minimum Clamp I.D.:	7.75
Maximum Clamp I.D.:	8.625

Construction:
3/8" hex, carbon steel screw. 5/8" wide 300 stainless steel band.

Part Number	Band Width	Hose OD
Part Number	Band Width	From	To
CT175L	5/8"	1"	1-3/4"
CT200L	5/8"	1-1/4"	2-1/8"
CT250L	5/8"	1-3/4"	2-5/8"
CT300L	5/8"	2-1/4"	3-1/8"
CT350L	5/8"	2-3/4"	3-5/8"
CT400L	5/8"	3-1/4"	4-1/8"
CT450L	5/8"	3-3/4"	4-5/8"
CT500L	5/8"	4-1/4"	5-1/8"
CT550L	5/8"	4-3/4"	5-5/8"
CT600L	5/8"	5-1/4"	6-1/8"
CT650L	5/8"	5-3/4"	6-5/8"
CT700L	5/8"	6-1/4"	7-1/8"
CT750L	5/8"	6-3/4"	7-5/8"
CT800L	5/8"	7-1/4"	8-1/8"
CT850L	5/8"	7-3/4"	8-5/8"
CT900L	5/8"	8-1/4"	9-1/8"
CT950L	5/8"	8-3/4"	9-5/8"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
