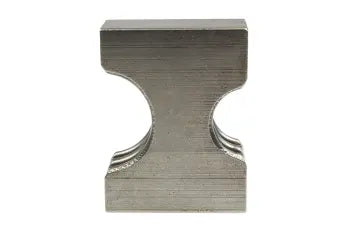

CV500-DH1 by Coilhose | Hose Crimper | .630" ID | CV500 Crimper Die Half # 1

CV500-DH1 by Coilhose | Hose Crimper | .630" ID | CV500 Crimper Die Half # 1

Save $9.25 Save $9.25
$23.12
$23.12 - $23.12
$23.12
$13.87
$13.87 - $13.87
$13.87
Coilhose Pneumatics - Hose Crimpers - CV500 Hose Crimper & Dies
Specifications for Variant SKU: CV500-DH1 Coilhose
Overview:
  • The CV500 Hose Crimper is furnished with mounting holes for permanent installations or it may be used as a portable tool for in-the-field hose assembly. Crimps 1/4" to 3/8" I.D. hose in either one or two braid design.
Features:
  • CV500 Includes the following (See Reference Picture):
    • A CV500-DH1 & CV500-DH2 (0.630")
    • B CV500-DH2 & CV500-DH3 (0.580")
    • C CV500-DH3 & CV500-DH4 (0.530")
    • D CV500-DH4 & CV500-DH5 (0.480")
    • E CV500-DH5 & CV500-DH6 (0.680")
Use with:

Part Number Description
CV500 Hose Crimper for 1/4" - 3/8" ID Hoses (die set included)

Die Reference Approximate Die
Inside Diameter		 Die Half Model
A .630" CV500-DH1
CV500-DH2
B .580" CV500-DH2
CV500-DH3
C .530" CV500-DH3
CV500-DH4
D .480" CV500-DH4
CV500-DH5
E .680" CV500-DH5
CV500-DH6

Optional Die Sets include the two die halves required to crimp a ferrule onto the hose.
Part Number Approx. Die Inside Diameter
CV500-DS7 .437"
CV500-DS8 .750"
CV500-DS9 .812"
CV500-DS10 .375"
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
