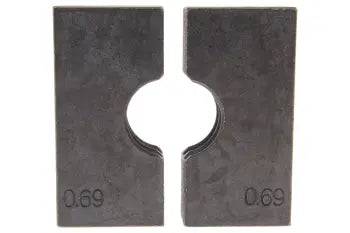

CV500-DS7 by Coilhose | Optional Die Set for CV500 Crimper | .437" ID

CV500-DS7 by Coilhose | Optional Die Set for CV500 Crimper | .437" ID

Save $19.05 Save $19.05
$47.63
$47.63 - $47.63
$47.63
$28.58
$28.58 - $28.58
$28.58
Coilhose Pneumatics - Hose Crimpers - CV500 Hose Crimper & Dies
Specifications for Variant SKU: CV500-DS7 Coilhose
Overview:
  • The CV500 Hose Crimper is furnished with mounting holes for permanent installations or it may be used as a portable tool for in-the-field hose assembly. Crimps 1/4" to 3/8" I.D. hose in either one or two braid design.
Features:
  • CV500 Includes the following (See Reference Picture):
    • A CV500-DH1 & CV500-DH2 (0.630")
    • B CV500-DH2 & CV500-DH3 (0.580")
    • C CV500-DH3 & CV500-DH4 (0.530")
    • D CV500-DH4 & CV500-DH5 (0.480")
    • E CV500-DH5 & CV500-DH6 (0.680")
Use with:

Part Number Description
CV500 Hose Crimper for 1/4" - 3/8" ID Hoses (die set included)

Die Reference Approximate Die
Inside Diameter		 Die Half Model
A .630" CV500-DH1
CV500-DH2
B .580" CV500-DH2
CV500-DH3
C .530" CV500-DH3
CV500-DH4
D .480" CV500-DH4
CV500-DH5
E .680" CV500-DH5
CV500-DH6

Optional Die Sets include the two die halves required to crimp a ferrule onto the hose.
Part Number Approx. Die Inside Diameter
CV500-DS7 .437"
CV500-DS8 .750"
CV500-DS9 .812"
CV500-DS10 .375"
