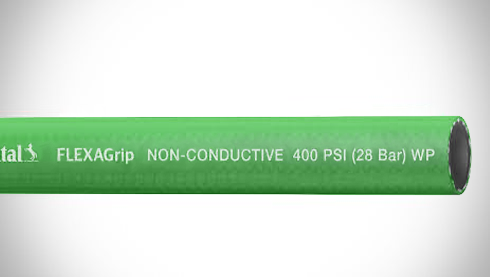

20022752 FLEXAGrip™ by ContiTech | Push-On Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 400 PSI | Green | 500ft

Minimum Order Quantity: 2 Units

$1,593.63 - $1,593.63

$1,593.63

$1,614.07

$1,614.07 - $1,614.07

$1,614.07

Continental ContiTech FLEXAGrip™ Push-on Air & Multipurpose Hose

For use with push-on fittings at maximum working pressures of 400 psi (1" rated at 300 psi). For low-pressure hydraulic pneumatic systems such as robotics, shop air systems, and general industrial, maintenance and automotive assembly applications. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC. MSHA approved covers. Silicone is not used in the manufacture of this hose.

Package Quantity: 500 FT

Quantity

Specifications for Variant SKU: 20022752 ContiTech \| 500 \|
Brand:	FLEXAGrip
Series:	FLEXAGrip
Hose Color(s):	Green
Internal Diameter:	0.375in
Outer Diameter:	0.67in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber
Applicable Specs & Approvals:	MSHA 2G-1C-14C/28

SPECIFICATIONS

Application:	Low-pressure hydraulic pneumatic systems such as robotics, shop air systems, and general industrial, maintenance and automotive assembly applications.	SAE Rating:	N/A
Other Ratings:	MSHA approved	Tube:	Chemivic oil- and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement:	One braided high-strength synthetic yarn laid at an angle for strength and coupling holding ability	Cover:	MSHA approved black (USMSHA 2G-1C-14C/27. Blue, gray, green, red, white, brown and yellow (USMSHA 2G-1C-14C/28). Weather, abrasion, and oil-resistant Carbryn™ rubber, ARPM Class A (High Oil Resistance)
Temperature Range:	-40°F to 210°F (-40°C to 99°C)	Fittings:	N/A
Branding:	FLEXAGrip™ Non-conductive 3/8" 400 psi WP Flame-resistant USMSHA 2G-IC-14C/27 Made in USA Continental ContiTech

Black Part Number	Blue Part Number	Gray Part Number	Green Part Number	Red Part Number	White Part Number	Brown Part Number	Yellow Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Bend Radius		Length	Weight		Black Order Code	Blue Order Code	Gray Order Code	Green Order Code	Red Order Code	White Order Code	Brown Order Code	Yellow Order Code
Black Part Number	Blue Part Number	Gray Part Number	Green Part Number	Red Part Number	White Part Number	Brown Part Number	Yellow Part Number	in.	mm	in.	mm	PSI	MPa	in.	mm	Length	lb./ft.	kg/m	Black Order Code	Blue Order Code	Gray Order Code	Green Order Code	Red Order Code	White Order Code	Brown Order Code	Yellow Order Code
20022699	-	-	-	-	-	-	-	3/16"	4.8mm	0.36"	9.10mm	400 PSI	2.76 MPa	3"	64mm	500ft	0.04 lbs./ft.	0.06 kg/m	53528300600400	-	-	-	-	-	-	-
20022700	20022719	20022736	20022750	20022767	-	20022806	20022827	1/4"	6.4mm	0.51"	13.0mm	400 PSI	2.76 MPa	3"	64mm	500ft	0.08 lbs./ft.	0.12 kg/m	53528300800400	53528400800400	53528500800400	53528600800400	53528900800400	-	53529200800400	53555100800400
20022703	20022722	20022739	20022752	20022772	20022784	20022808	20022829	3/8"	9.5mm	0.67"	17.0mm	400 PSI	2.76 MPa	3"	76mm	500ft	0.13 lbs./ft.	0.19 kg/m	53528301200400	53528401200400	53528501200400	53528601200400	53528901200400	53529001200400	53529201200400	53555101200400
20022706	20022726	20022742	20022754	20022775	20022786	20022810	20022830	1/2"	12.7mm	0.76"	19.3mm	400 PSI	2.76 MPa	5"	127mm	500ft	0.14 lbs./ft.	0.21 kg/m	53528301600200	53528401600200	53528501600200	53528601600200	53528901600200	53529001600200	53529201600200	53555101600200
20022711	20022730	20022745	20022757	20022777	-	-	20022832	5/8"	15.9mm	0.93"	23.6mm	400 PSI	2.76 MPa	6"	152mm	500ft	0.19 lbs./ft.	0.28 kg/m	53528302000400	53528402000400	53528502000400	53528602000400	53528902000400	-	-	53555102000400
20022714	20022732	20022747	20022759	20022779	20022789	20022812	20022833	3/4"	19.1mm	1.06"	26.9mm	400 PSI	2.76 MPa	7"	178mm	500ft	0.26 lbs./ft.	0.37 kg/m	53528302400200	53528402400200	53528502400200	53528602400200	53528902400200	53529002400200	53529202400200	53555102400200
20141684	20146787	20148619	20146786	20112353	-	-	-	1"	25.4mm	1.34"	34.0mm	300 PSI	2.07 MPa	8"	203mm	500ft	0.34 lbs./ft.	0.51 kg/m	53528303200400	53528403200400	53528503200400	53528603200400	53528903200400	-	-	-

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
