20022759 FLEXAGrip™ by ContiTech | Push-On Air / Multipurpose Hose | Continental | 0.75" (3/4") ID | 400 PSI | Green | 500ft

Save $70.72 Save $70.72
Original price $2,856.59
Original price $2,856.59 - Original price $2,856.59
Original price $2,856.59
Current price $2,785.87
$2,785.87 - $2,785.87
Current price $2,785.87

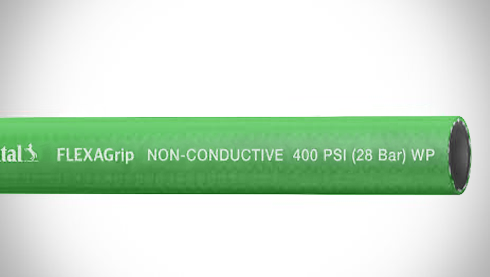

Continental ContiTech FLEXAGrip™ Push-on Air & Multipurpose Hose

For use with push-on fittings at maximum working pressures of 400 psi (1" rated at 300 psi). For low-pressure hydraulic pneumatic systems such as robotics, shop air systems, and general industrial, maintenance and automotive assembly applications. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC. MSHA approved covers. Silicone is not used in the manufacture of this hose.

Package Quantity: 500 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20022759 ContiTech | 500 |
Brand: FLEXAGrip
Series: FLEXAGrip
Hose Color(s): Green
Internal Diameter: 0.75in
Outer Diameter: 1.06in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: MSHA 2G-1C-14C/28

SPECIFICATIONS

Application: Low-pressure hydraulic pneumatic systems such as robotics, shop air systems, and general industrial, maintenance and automotive assembly applications. SAE Rating: N/A
Other Ratings: MSHA approved Tube: Chemivic oil- and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: One braided high-strength synthetic yarn laid at an angle for strength and coupling holding ability Cover: MSHA approved black (USMSHA 2G-1C-14C/27. Blue, gray, green, red, white, brown and yellow (USMSHA 2G-1C-14C/28). Weather, abrasion, and oil-resistant Carbryn™ rubber, ARPM Class A (High Oil Resistance)
Temperature Range: -40°F to 210°F (-40°C to 99°C) Fittings: N/A
Branding: FLEXAGrip™ Non-conductive 3/8" 400 psi WP Flame-resistant USMSHA 2G-IC-14C/27 Made in USA Continental ContiTech
Black
Part Number
Blue
Part Number
Gray
Part Number
Green
Part Number
Red
Part Number
White
Part Number
Brown
Part Number
Yellow
Part Number
Inside
Diameter
Nominal Outside
Diameter
Max. Working
Pressure
Bend
Radius
Length Weight Black
Order Code
Blue
Order Code
Gray
Order Code
Green
Order Code
Red
Order Code
White
Order Code
Brown
Order Code
Yellow
Order Code
in. mm in. mm PSI MPa in. mm lb./ft. kg/m
20022699 - - - - - - - 3/16" 4.8mm 0.36" 9.10mm 400 PSI 2.76 MPa 3" 64mm 500ft 0.04 lbs./ft. 0.06 kg/m 53528300600400 - - - - - - -
20022700 20022719 20022736 20022750 20022767 - 20022806 20022827 1/4" 6.4mm 0.51" 13.0mm 400 PSI 2.76 MPa 3" 64mm 500ft 0.08 lbs./ft. 0.12 kg/m 53528300800400 53528400800400 53528500800400 53528600800400 53528900800400 - 53529200800400 53555100800400
20022703 20022722 20022739 20022752 20022772 20022784 20022808 20022829 3/8" 9.5mm 0.67" 17.0mm 400 PSI 2.76 MPa 3" 76mm 500ft 0.13 lbs./ft. 0.19 kg/m 53528301200400 53528401200400 53528501200400 53528601200400 53528901200400 53529001200400 53529201200400 53555101200400
20022706 20022726 20022742 20022754 20022775 20022786 20022810 20022830 1/2" 12.7mm 0.76" 19.3mm 400 PSI 2.76 MPa 5" 127mm 500ft 0.14 lbs./ft. 0.21 kg/m 53528301600200 53528401600200 53528501600200 53528601600200 53528901600200 53529001600200 53529201600200 53555101600200
20022711 20022730 20022745 20022757 20022777 - - 20022832 5/8" 15.9mm 0.93" 23.6mm 400 PSI 2.76 MPa 6" 152mm 500ft 0.19 lbs./ft. 0.28 kg/m 53528302000400 53528402000400 53528502000400 53528602000400 53528902000400 - - 53555102000400
20022714 20022732 20022747 20022759 20022779 20022789 20022812 20022833 3/4" 19.1mm 1.06" 26.9mm 400 PSI 2.76 MPa 7" 178mm 500ft 0.26 lbs./ft. 0.37 kg/m 53528302400200 53528402400200 53528502400200 53528602400200 53528902400200 53529002400200 53529202400200 53555102400200
20141684 20146787 20148619 20146786 20112353 - - - 1" 25.4mm 1.34" 34.0mm 300 PSI 2.07 MPa 8" 203mm 500ft 0.34 lbs./ft. 0.51 kg/m 53528303200400 53528403200400 53528503200400 53528603200400 53528903200400 - - -

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
