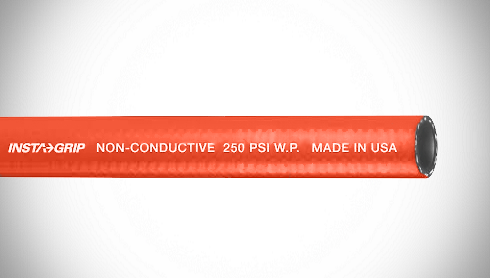

20025988 Insta-Grip™ by ContiTech | 250 Push-On Air / Multipurpose Hose | Continental | 0.25" (1/4") ID | 250 PSI | Red | 500ft

$762.60

Continental ContiTech Insta-Grip™ 250 Push-on Air & Multipurpose Hose

For industrial service with push-on fittings at working pressures of 250 psi. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC.

Package Quantity: 500 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20025988 ContiTech | 500 |
Brand: Insta-Grip 250
Series: Insta-Grip 250
Hose Color(s): Red
Internal Diameter: 0.25in
Outer Diameter: 0.51in
MAWP: 250
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber

SPECIFICATIONS

Application: Industrial service. SAE Rating: N/A
Other Ratings: N/A Tube: Chemivic oil and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: Spiral aramid yarn Cover: Chemivic, ARPM Class B (Medium Oil Resistance)
Temperature Range: -20°F to 210°F (-29°C to 99°C) Fittings: N/A
Branding: Insta-Grip™ Non-conductive 3/8" (9.5 mm) 250 psi WP Made in USA Continental ContiTech
Red
Part Number
Black
Part Number
Green
Part Number
Gray
Part Number
Inside
Diameter
Nominal Outside
Diameter
Max. Working
Pressure
Length Weight Red
Order Code
Black
Order Code
Green
Order Code
Gray
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20025988 20026001 20026043 20160048 1/4" 6.4mm 0.51" 12.7mm 250 PSI 1.72 MPa 500ft 0.08 lbs./ft. 0.12 kg/m 56901306400200 56901406400200 56901506400200 56901606400200
20025994 20026012 20026046 20026055 3/8" 9.5mm 0.65" 16.5mm 250 PSI 1.72 MPa 500ft 0.12 lbs./ft. 0.18 kg/m 56901309500200 56901409500200 56901509500200 56901609500200
20025999 20026030 20026050 20026057 1/2" 12.7mm 0.80" 20.3mm 250 PSI 1.72 MPa 500ft 0.17 lbs./ft. 0.25 kg/m 56901312700200 56901412700200 56901512700200 56901612700200
- 20026035 - 20195088 5/8" 15.9mm 0.94" 23.9mm 250 PSI 1.72 MPa 500ft 0.23 lbs./ft. 0.34 kg/m - 56901415900200 - 56901615900200
- 20026037 - 20195089 3/4" 19.1mm 1.08" 27.4mm 250 PSI 1.72 MPa 50ft 0.28 lbs./ft. 0.42 kg/m - 56901419100200 - 56901619100200

Hose design ratio (burst pressure) 4:1.
