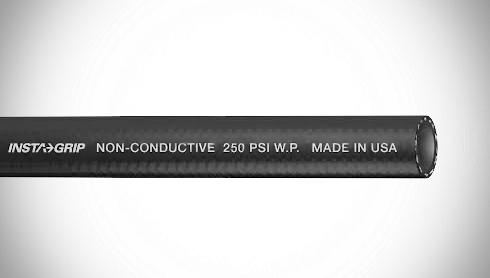

20026012 Insta-Grip™ by ContiTech | 250 Push-On Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 250 PSI | Black | 500ft

$936.89 - $936.89

$936.89

$948.60

$948.60 - $948.60

$948.60

Continental ContiTech Insta-Grip™ 250 Push-on Air & Multipurpose Hose

For industrial service with push-on fittings at working pressures of 250 psi. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC.

Package Quantity: 500 FT

Quantity

Specifications for Variant SKU: 20026012 ContiTech \| 500 \|
Brand:	Insta-Grip 250
Series:	Insta-Grip 250
Hose Color(s):	Black
Internal Diameter:	0.375in
Outer Diameter:	0.65in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber

SPECIFICATIONS

Application:	Industrial service.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Chemivic oil and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement:	Spiral aramid yarn	Cover:	Chemivic, ARPM Class B (Medium Oil Resistance)
Temperature Range:	-20°F to 210°F (-29°C to 99°C)	Fittings:	N/A
Branding:	Insta-Grip™ Non-conductive 3/8" (9.5 mm) 250 psi WP Made in USA Continental ContiTech

Red Part Number	Black Part Number	Green Part Number	Gray Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Length	Weight		Red Order Code	Black Order Code	Green Order Code	Gray Order Code
Red Part Number	Black Part Number	Green Part Number	Gray Part Number	in.	mm	in.	mm	PSI	MPa	Length	lb./ft.	kg/m	Red Order Code	Black Order Code	Green Order Code	Gray Order Code
20025988	20026001	20026043	20160048	1/4"	6.4mm	0.51"	12.7mm	250 PSI	1.72 MPa	500ft	0.08 lbs./ft.	0.12 kg/m	56901306400200	56901406400200	56901506400200	56901606400200
20025994	20026012	20026046	20026055	3/8"	9.5mm	0.65"	16.5mm	250 PSI	1.72 MPa	500ft	0.12 lbs./ft.	0.18 kg/m	56901309500200	56901409500200	56901509500200	56901609500200
20025999	20026030	20026050	20026057	1/2"	12.7mm	0.80"	20.3mm	250 PSI	1.72 MPa	500ft	0.17 lbs./ft.	0.25 kg/m	56901312700200	56901412700200	56901512700200	56901612700200
-	20026035	-	20195088	5/8"	15.9mm	0.94"	23.9mm	250 PSI	1.72 MPa	500ft	0.23 lbs./ft.	0.34 kg/m	-	56901415900200	-	56901615900200
-	20026037	-	20195089	3/4"	19.1mm	1.08"	27.4mm	250 PSI	1.72 MPa	50ft	0.28 lbs./ft.	0.42 kg/m	-	56901419100200	-	56901619100200

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
