20025512 VariFlex™ by ContiTech | 300 Air / Multipurpose Hose | Continental | 0.50" (1/2") ID | 300 PSI | Red | 500ft

20025512 VariFlex™ by ContiTech | 300 Air / Multipurpose Hose | Continental | 0.50" (1/2") ID | 300 PSI | Red | 500ft

$1,405.33 - $1,405.33
$1,405.33
$1,423.93
$1,423.93 - $1,423.93
$1,423.93

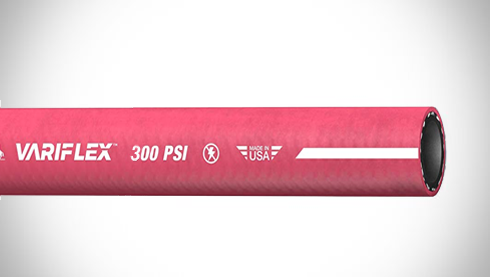

Continental ContiTech VariFlex™ 300 Air & Multipurpose Hose

A good-quality, economical general purpose hose for industrial air service, compressor lines, pneumatic tools, low-pressure spray and many other applications where the need for oil resistance is moderate. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of length of hose at 1000 volts DC.

Package Quantity: 500 FT

Specifications for Variant SKU: 20025512 ContiTech | 500 |
Brand: VariFlex 300
Series: VariFlex 300
Hose Color(s): Red
Internal Diameter: 0.50in
Outer Diameter: 0.86in
Tubing Construction: Nitrile
Cover Construction: Synthetic Rubber

SPECIFICATIONS

Application: Industrial air service, compressor lines, pneumatic tools, low-pressure spray. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: Spiral synthetic yarn (3/16"-1-1/2"), braided synthetic yarn (2") Cover: Red, blue or black Chemivic synthetic rubber, ARPM Class A (High Oil Resistance)
Temperature Range: -20°F to 210°F (-29°C to 99°C) Fittings: N/A
Branding: Variflex Nonconductive 1/2" (12.7 mm) 300 psi WP. Made in USA. ContiTech
Black
Part Number		 Red
Part Number		 Blue
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Black
Order Code		 Red
Order Code		 Blue
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20025408 20026316 20025498 1/4" 6.4mm 0.54" 13.7mm 300 PSI 2.07 MPa 500ft 0.14 lbs./ft. 0.21 kg/m 56900606400200 56903706400200 56900806400200
20025428 - 20025499 5/16" 7.9mm 0.64" 16.3mm 300 PSI 2.07 MPa 500ft 0.18 lbs./ft. 0.27 kg/m 56900607900200 - 56900807900200
20025430 20026318 20025502 3/8" 9.5mm 0.69" 17.5mm 300 PSI 2.07 MPa 500ft 0.19 lbs./ft. 0.28 kg/m 56900609500200 56903709500200 56900809500200
20025450 20026319 20025512 1/2" 12.7mm 0.86" 21.8mm 300 PSI 2.07 MPa 500ft 0.26 lbs./ft. 0.39 kg/m 56900612700200 56903712700200 56900812700200
- 20026322 20025518 5/8" 15.9mm 1.02" 25.9mm 300 PSI 2.07 MPa 500ft 0.33 lbs./ft. 0.49 kg/m - 56903715900200 56900815900200
20025471 20026323 20025522 3/4" 19.1mm 1.19" 30.2mm 300 PSI 2.07 MPa 500ft 0.42 lbs./ft. 0.63 kg/m 56900619100200 56903719100200 56900819100200
20025477 20026334 20025532 1" 25.4mm 1.50" 38.1mm 300 PSI 2.07 MPa 450ft 0.62 lbs./ft. 0.92 kg/m 56900625400200 56903725400200 56900825400200
20026192 20026210 20026197 1-1/4" 31.8mm 1.77" 45.6mm 250 PSI 1.72 MPa 400ft 0.84 lbs./ft. 1.25 kg/m 56902431800200 56902631800200 56902531800200
20026194 20026211 20026202 1-1/2" 38.1mm 2.08" 53.2mm 250 PSI 1.72 MPa 300ft 1.01 lbs./ft. 1.50 kg/m 56902438100200 56902638100200 56902538100200
Coupled Lengths
Red
Part Number		 Coupling Type Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Red
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20104919 1/4" Male NPT x 1/4" Male NPT 1/4" 6.4mm 0.54" 13.7mm 300 PSI 2.07 MPa 50ft 0.14 lbs./ft. 0.21 kg/m 56900806450201
20104940 1/4" Male NPT x 1/4" Male NPT 3/8" 9.5mm 0.69" 17.5mm 300 PSI 2.07 MPa 25ft 0.19 lbs./ft. 0.28 kg/m 56900809540101
20104942 1/4" Male NPT x 1/4" Male NPT 3/8" 9.5mm 0.69" 17.5mm 300 PSI 2.07 MPa 50ft 0.19 lbs./ft. 0.28 kg/m 56900809550201
20104908 1/2" Male NPT x 1/2" Male NPT 1/2" 12.7mm 0.86" 21.8mm 300 PSI 2.07 MPa 25ft 0.26 lbs./ft. 0.39 kg/m 56900812740101
20104909 1/2" Male NPT x 1/2" Male NPT 1/2" 12.7mm 0.86" 21.8mm 300 PSI 2.07 MPa 50ft 0.26 lbs./ft. 0.39 kg/m 56900812750201

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
