20026323 VariFlex™ by ContiTech | 300 Air / Multipurpose Hose | Continental | 0.75" (3/4") ID | 300 PSI | Blue | 500ft

Save $55.34

$2,227.41

$2,227.41 - $2,227.41

$2,227.41

$2,172.07

$2,172.07 - $2,172.07

$2,172.07

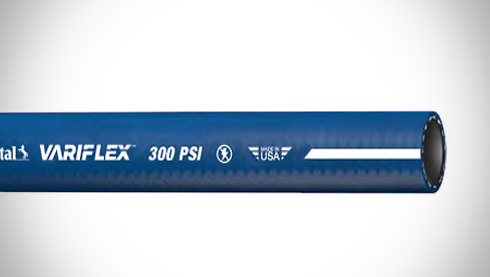

Continental ContiTech VariFlex™ 300 Air & Multipurpose Hose

A good-quality, economical general purpose hose for industrial air service, compressor lines, pneumatic tools, low-pressure spray and many other applications where the need for oil resistance is moderate. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of length of hose at 1000 volts DC.

Package Quantity: 500 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20026323 ContiTech \| 500 \|
Brand:	VariFlex 300
Series:	VariFlex 300
Hose Color(s):	Blue
Internal Diameter:	0.75in
Outer Diameter:	1.19in
Tubing Construction:	Nitrile
Cover Construction:	Synthetic Rubber

SPECIFICATIONS

Application:	Industrial air service, compressor lines, pneumatic tools, low-pressure spray.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement:	Spiral synthetic yarn (3/16"-1-1/2"), braided synthetic yarn (2")	Cover:	Red, blue or black Chemivic synthetic rubber, ARPM Class A (High Oil Resistance)
Temperature Range:	-20°F to 210°F (-29°C to 99°C)	Fittings:	N/A
Branding:	Variflex Nonconductive 1/2" (12.7 mm) 300 psi WP. Made in USA. ContiTech

Black Part Number	Red Part Number	Blue Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Length	Weight		Black Order Code	Red Order Code	Blue Order Code
Black Part Number	Red Part Number	Blue Part Number	in.	mm	in.	mm	PSI	MPa	Length	lb./ft.	kg/m	Black Order Code	Red Order Code	Blue Order Code
20025408	20026316	20025498	1/4"	6.4mm	0.54"	13.7mm	300 PSI	2.07 MPa	500ft	0.14 lbs./ft.	0.21 kg/m	56900606400200	56903706400200	56900806400200
20025428	-	20025499	5/16"	7.9mm	0.64"	16.3mm	300 PSI	2.07 MPa	500ft	0.18 lbs./ft.	0.27 kg/m	56900607900200	-	56900807900200
20025430	20026318	20025502	3/8"	9.5mm	0.69"	17.5mm	300 PSI	2.07 MPa	500ft	0.19 lbs./ft.	0.28 kg/m	56900609500200	56903709500200	56900809500200
20025450	20026319	20025512	1/2"	12.7mm	0.86"	21.8mm	300 PSI	2.07 MPa	500ft	0.26 lbs./ft.	0.39 kg/m	56900612700200	56903712700200	56900812700200
-	20026322	20025518	5/8"	15.9mm	1.02"	25.9mm	300 PSI	2.07 MPa	500ft	0.33 lbs./ft.	0.49 kg/m	-	56903715900200	56900815900200
20025471	20026323	20025522	3/4"	19.1mm	1.19"	30.2mm	300 PSI	2.07 MPa	500ft	0.42 lbs./ft.	0.63 kg/m	56900619100200	56903719100200	56900819100200
20025477	20026334	20025532	1"	25.4mm	1.50"	38.1mm	300 PSI	2.07 MPa	450ft	0.62 lbs./ft.	0.92 kg/m	56900625400200	56903725400200	56900825400200
20026192	20026210	20026197	1-1/4"	31.8mm	1.77"	45.6mm	250 PSI	1.72 MPa	400ft	0.84 lbs./ft.	1.25 kg/m	56902431800200	56902631800200	56902531800200
20026194	20026211	20026202	1-1/2"	38.1mm	2.08"	53.2mm	250 PSI	1.72 MPa	300ft	1.01 lbs./ft.	1.50 kg/m	56902438100200	56902638100200	56902538100200

Red Part Number	Coupling Type	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Length	Weight		Red Order Code
Coupled Lengths
Red Part Number	Coupling Type	in.	mm	in.	mm	PSI	MPa	Length	lb./ft.	kg/m	Red Order Code
20104919	1/4" Male NPT x 1/4" Male NPT	1/4"	6.4mm	0.54"	13.7mm	300 PSI	2.07 MPa	50ft	0.14 lbs./ft.	0.21 kg/m	56900806450201
20104940	1/4" Male NPT x 1/4" Male NPT	3/8"	9.5mm	0.69"	17.5mm	300 PSI	2.07 MPa	25ft	0.19 lbs./ft.	0.28 kg/m	56900809540101
20104942	1/4" Male NPT x 1/4" Male NPT	3/8"	9.5mm	0.69"	17.5mm	300 PSI	2.07 MPa	50ft	0.19 lbs./ft.	0.28 kg/m	56900809550201
20104908	1/2" Male NPT x 1/2" Male NPT	1/2"	12.7mm	0.86"	21.8mm	300 PSI	2.07 MPa	25ft	0.26 lbs./ft.	0.39 kg/m	56900812740101
20104909	1/2" Male NPT x 1/2" Male NPT	1/2"	12.7mm	0.86"	21.8mm	300 PSI	2.07 MPa	50ft	0.26 lbs./ft.	0.39 kg/m	56900812750201

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
