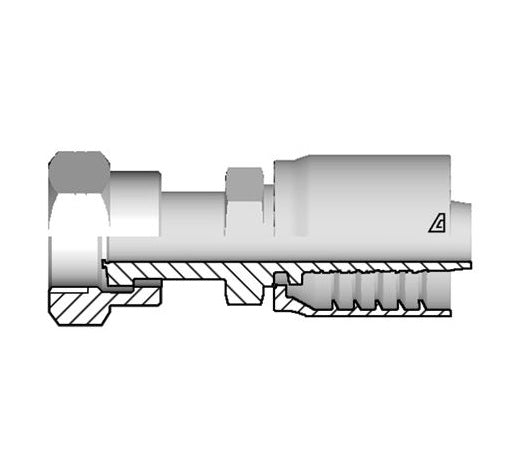

D-1010-FOFS Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -10 Hose ID x -10 Female O-Ring Face Seal | Steel

D-1010-FOFS Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -10 Hose ID x -10 Female O-Ring Face Seal | Steel

Save $9.41 Save $9.41
$32.94
$32.94 - $32.94
$32.94
$23.53
$23.53 - $23.53
$23.53

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female O-Ring Face Seal
Specifications for Variant SKU: D-1010-FOFS Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 5/8in Female O-Ring Face Seal
Material(s): Steel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FOFS 06 3/8" 9.5mm 06 11/16-16 30.3mm 17mm 22mm 0.25 lbs
D-0608-FOFS 06 3/8" 9.5mm 08 13/16-16 35.3mm 22mm 24mm 0.32 lbs
D-0808-FOFS 08 1/2" 12.7mm 08 13/16-16 36.1mm 22mm 24mm 0.36 lbs
D-0810-FOFS 08 1/2" 12.7mm 10 1-14 39.6mm 24mm 30mm 0.46 lbs
D-1010-FOFS 10 5/8" 15.9mm 10 1-14 39.6mm 24mm 30mm 0.50 lbs
D-1012-FOFS 10 5/8" 15.9mm 12 1-3/16-12 42.1mm 30mm 36mm 0.68 lbs
D-1210-FOFS 12 3/4" 19.0mm 10 1-14 40.1mm 27mm 30mm 0.72 lbs
D-1212-FOFS 12 3/4" 19.0mm 12 1-3/16-12 42.6mm 30mm 36mm 0.74 lbs
D-1216-FOFS 12 3/4" 19.0mm 16 1-7/16-12 48.6mm 36mm 41mm 0.96 lbs
D-1612-FOFS 16 1" 25.4mm 12 1-3/16-12 45.4mm 32mm 36mm 1.12 lbs
D-1616-FOFS 16 1" 25.4mm 16 1-7/16-12 49.4mm 36mm 41mm 1.16 lbs
D-1620-FOFS 16 1" 25.4mm 20 1-11/16-12 50.4mm 41mm 50mm 1.49 lbs
D-2020-FOFS 20 1-1/4" 31.8mm 20 1-11/16-12 52.0mm 41mm 50mm 1.60 lbs
D-2424-FOFS 24 1-1/2" 38.1mm 24 2-12 56.5mm 50mm 60mm 2.45 lbs
