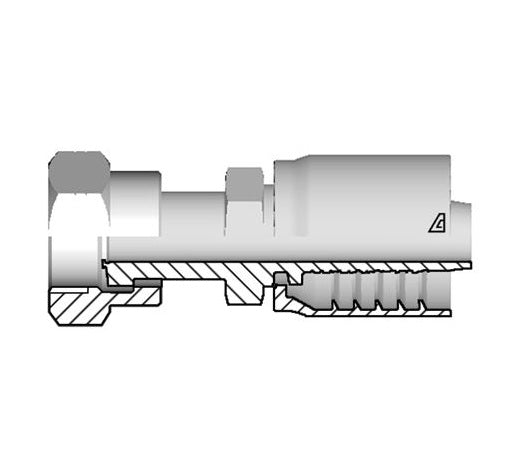

D-1212-F0FS Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -12 Female O-Ring Face Seal | Steel

D-1212-FOFS Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -12 Female O-Ring Face Seal | Steel | Pack of 5

Save $8.58

$30.03

$30.03 - $30.03

$30.03

$21.45

$21.45 - $21.45

$21.45

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female O-Ring Face Seal

Package Quantity: 5 EA

Specifications for Variant SKU: D-1212-FOFS Kuriyama
Brand:	Alfagomma
Series:	D Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Female O-Ring Face Seal
Material(s):	Steel
Compatible with the following Series:	E4K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| ABT3K Series \| TR1HT Series \| TR2HT Series

About D-Series Fittings:
A one-piece non-skive crimp fitting for: Wire braided hoses above 1" ID and 4 wire spiral hose. Alfabiotech 3000 1-1/4" ID thru 2" ID. Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	CH2	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
D-0606-FOFS	06	3/8"	9.5mm	06	11/16-16	30.3mm	17mm	22mm	0.25 lbs
D-0608-FOFS	06	3/8"	9.5mm	08	13/16-16	35.3mm	22mm	24mm	0.32 lbs
D-0808-FOFS	08	1/2"	12.7mm	08	13/16-16	36.1mm	22mm	24mm	0.36 lbs
D-0810-FOFS	08	1/2"	12.7mm	10	1-14	39.6mm	24mm	30mm	0.46 lbs
D-1010-FOFS	10	5/8"	15.9mm	10	1-14	39.6mm	24mm	30mm	0.50 lbs
D-1012-FOFS	10	5/8"	15.9mm	12	1-3/16-12	42.1mm	30mm	36mm	0.68 lbs
D-1210-FOFS	12	3/4"	19.0mm	10	1-14	40.1mm	27mm	30mm	0.72 lbs
D-1212-FOFS	12	3/4"	19.0mm	12	1-3/16-12	42.6mm	30mm	36mm	0.74 lbs
D-1216-FOFS	12	3/4"	19.0mm	16	1-7/16-12	48.6mm	36mm	41mm	0.96 lbs
D-1612-FOFS	16	1"	25.4mm	12	1-3/16-12	45.4mm	32mm	36mm	1.12 lbs
D-1616-FOFS	16	1"	25.4mm	16	1-7/16-12	49.4mm	36mm	41mm	1.16 lbs
D-1620-FOFS	16	1"	25.4mm	20	1-11/16-12	50.4mm	41mm	50mm	1.49 lbs
D-2020-FOFS	20	1-1/4"	31.8mm	20	1-11/16-12	52.0mm	41mm	50mm	1.60 lbs
D-2424-FOFS	24	1-1/2"	38.1mm	24	2-12	56.5mm	50mm	60mm	2.45 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
