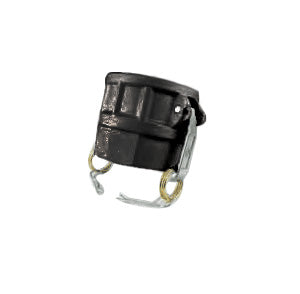

D125P by Jason Industrial | 1-1/4" SCH.80 Cam and Groove | Part D | Female Coupler x Female NPT Thread | Black | Polypropylene

D125P by Jason Industrial | 1-1/4" SCH.80 Cam and Groove | Part D | Female Coupler x Female NPT Thread | Black | Polypropylene

Save $4.08 Save $4.08
$14.29
$14.29 - $14.29
$14.29
$10.21
$10.21 - $10.21
$10.21

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part D - Female Coupler x Female NPT Thread - Black SCH.80 Polypropylene
Specifications for Variant SKU: D125P Jason
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 1-1/4in Female Cam & Groove, 1-1/4in Female NPT
Material(s): Polypropylene, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Female end fits male adapter or Dust Plug.
  • Female end thread is NPT.
  • Bowl has recess for washer replacement.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • The 1/2" size is not specified to any Mil spec.
Material Specs:
  • Black Schedule 80 polypropylene body.
  • 304 Type stainless steel handles, safety pins and rings.
  • Gaskets are nitrile.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
D050P 1/2" 125 PSI
D075P 3/4" 125 PSI
D100P 1" 125 PSI
D125P 1-1/4" 100 PSI
D150P 1-1/2" 100 PSI
D200P 2" 100 PSI
D300P 3" 75 PSI
D400P 4" 60 PSI

* Plastic coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
