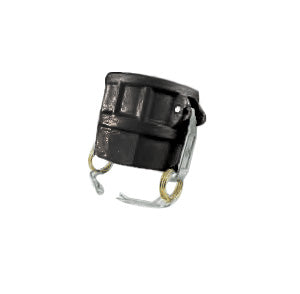

D200P by Jason Industrial | 2" SCH.80 Cam and Groove | Part D | Female Coupler x Female NPT Thread | Black | Polypropylene

Save $5.68

$19.89

$19.89 - $19.89

$19.89

$14.21

$14.21 - $14.21

$14.21

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part D - Female Coupler x Female NPT Thread - Black SCH.80 Polypropylene

Specifications for Variant SKU: D200P Jason
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	2in Female Cam & Groove, 2in Female NPT
Material(s):	Polypropylene, 304 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Applications:
Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
Female end fits male adapter or Dust Plug. Female end thread is NPT. Bowl has recess for washer replacement. Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard. The 1/2" size is not specified to any Mil spec.
Material Specs:
Black Schedule 80 polypropylene body. 304 Type stainless steel handles, safety pins and rings. Gaskets are nitrile.
Safety Warnings:
Please do not mix Jason Industrial couplings with other products.

Part Number	Size	Max. Working Pressure* PSI
D050P	1/2"	125 PSI
D075P	3/4"	125 PSI
D100P	1"	125 PSI
D125P	1-1/4"	100 PSI
D150P	1-1/2"	100 PSI
D200P	2"	100 PSI
D300P	3"	75 PSI
D400P	4"	60 PSI

* Plastic coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
