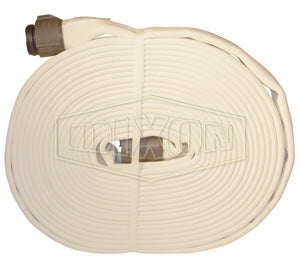

D815-25RAF Dixon 800# Double Jacket All Polyester Fire Hose - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 25ft Length

D815-25RAF Dixon 800# Double Jacket All Polyester Fire Hose - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 25ft Length

Save $117.11 Save $117.11
$292.78
$292.78 - $292.78
$292.78
$175.67
$175.67 - $175.67
$175.67

Dixon Fire Fittings
Fire Hose - 800# Double Jacket All Polyester Fire Hose - Coupled
Specifications for Variant SKU: D815-25RAF Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 1.5in
Tubing Construction: EPDM
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Female NST, 1-1/2in Male NST
Features:
  • Outer construction: double jacket, all polyester.
  • Tube construction: EPDM rubber lining.
  • Proof pressure: 800 PSI.
  • Service test pressure: 400 PSI.
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C).
Part Number Size Length Weight
(Lbs.)
Coupled with Female x Male NST(NH) Aluminum Expansion Ring Couplings - Rocker Lug
D815-25RAF 1-1/2" 25 ft 10.0000
D815-50RAF 1-1/2" 50 ft 16.9500
D815100RAF 1-1/2" 100 ft 31.1000
D825-25RAF 2-1/2" 25 ft 17.3650
D825-50RAF 2-1/2" 50 ft 29.2000
D825100RAF 2-1/2" 100 ft 70.3500
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings - Rocker Lug
D815-50RBF 1-1/2" 50 ft 17.3200
D815100RBF 1-1/2" 100 ft 31.8000
D825100RBF 2-1/2" 100 ft 60.0000
Coupled with Female x Male NPSH Aluminum Expansion Ring Couplings - Rocker Lug
D815-50RAS 1-1/2" 50 ft 16.4400
D815100RAS 1-1/2" 100 ft 32.6800
D825-50RAS 2-1/2" 50 ft 28.4000
D825100RAS 2-1/2" 100 ft 70.3500
