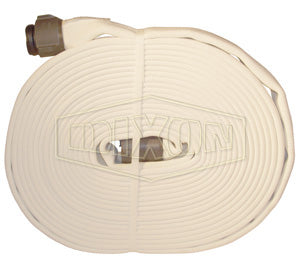

D825100RAS Dixon 800# Double Jacket All Polyester Fire Hose - Coupled - Female and Male NPSH Expansion Ring Couplings (Aluminum) - 2-1/2" Hose Size - 100ft Length

D825100RAS Dixon 800# Double Jacket All Polyester Fire Hose - Coupled - Female and Male NPSH Expansion Ring Couplings (Aluminum) - 2-1/2" Hose Size - 100ft Length

Save $449.71 Save $449.71
$1,124.28
$1,124.28 - $1,124.28
$1,124.28
$674.57
$674.57 - $674.57
$674.57

Dixon Fire Fittings
Fire Hose - 800# Double Jacket All Polyester Fire Hose - Coupled
Specifications for Variant SKU: D825100RAS Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 2.5in
Tubing Construction: EPDM
Cover Construction: Polyester Textile Braid
Ends Configuration: 2-1/2in Female NPSH, 2-1/2in Male NPSH
Features:
  • Outer construction: double jacket, all polyester.
  • Tube construction: EPDM rubber lining.
  • Proof pressure: 800 PSI.
  • Service test pressure: 400 PSI.
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C).
Part Number Size Length Weight
(Lbs.)
Coupled with Female x Male NST(NH) Aluminum Expansion Ring Couplings - Rocker Lug
D815-25RAF 1-1/2" 25 ft 10.0000
D815-50RAF 1-1/2" 50 ft 16.9500
D815100RAF 1-1/2" 100 ft 31.1000
D825-25RAF 2-1/2" 25 ft 17.3650
D825-50RAF 2-1/2" 50 ft 29.2000
D825100RAF 2-1/2" 100 ft 70.3500
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings - Rocker Lug
D815-50RBF 1-1/2" 50 ft 17.3200
D815100RBF 1-1/2" 100 ft 31.8000
D825100RBF 2-1/2" 100 ft 60.0000
Coupled with Female x Male NPSH Aluminum Expansion Ring Couplings - Rocker Lug
D815-50RAS 1-1/2" 50 ft 16.4400
D815100RAS 1-1/2" 100 ft 32.6800
D825-50RAS 2-1/2" 50 ft 28.4000
D825100RAS 2-1/2" 100 ft 70.3500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
