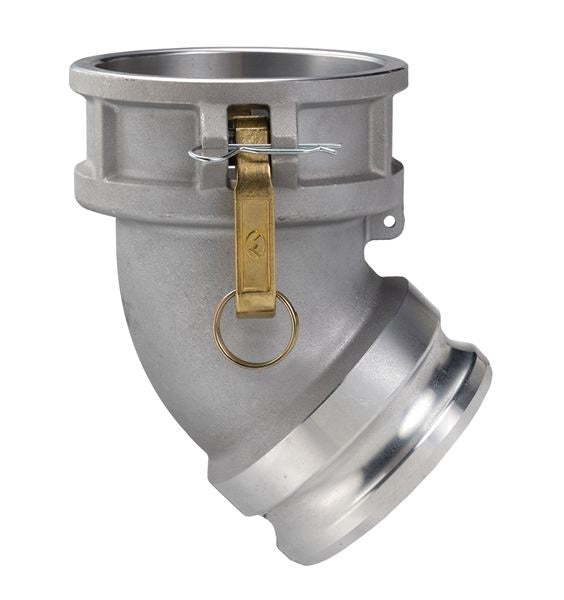

DA45-A200 by Kuriyama | DA45-A Series | Part DA | 45° Elbow | Cam & Groove Adapter | 2" Coupler x 2" Adapter | Aluminum

DA45-A200 by Kuriyama | DA45-A Series | Part DA | 45° Elbow | Cam & Groove Adapter | 2" Coupler x 2" Adapter | Aluminum

Save $14.61 Save $14.61
$83.65
$83.65 - $83.65
$83.65
$69.04
$69.04 - $69.04
$69.04

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | DA45-A Series | Part DA | 45° Elbow | Coupler x Adapter | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: DA45-A200 Kuriyama
Series: DA45-A Series
Shape (Orientation): 45 Degree
Cam Type: Other
Ends Configuration: 2in Female Cam & Groove, 2in Male Cam & Groove
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
  • Forged brass handles.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
DA45-A200 2" 250 PSI B85 Grade 383 1.65 lbs
DA45-A300 3" 150 PSI B85 Grade 383 2.45 lbs
DA45-A400 4" 150 PSI B85 Grade 383 4.90 lbs
DA45-A600 6" 75 PSI B85 Grade 383 14.80 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
