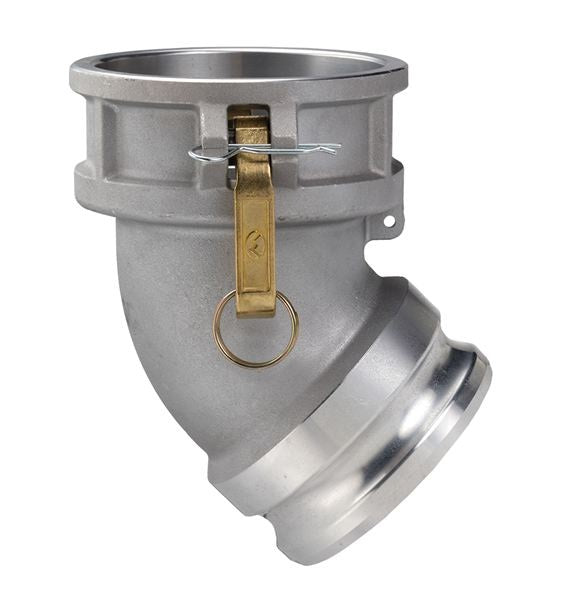

DA45-A600 by Kuriyama | DA45-A Series | Part DA | 45° Elbow | Cam & Groove Adapter | 6" Coupler x 6" Adapter | Aluminum

Save $65.43

$429.16

$429.16 - $429.16

$429.16

$363.73

$363.73 - $363.73

$363.73

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: DA45-A600 Kuriyama
Series:	DA45-A Series
Shape (Orientation):	45 Degree
Cam Type:	Other
Ends Configuration:	6in Female Cam & Groove, 6in Male Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Aluminum alloy specially designed for high tensile strength and impact resistance.
Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability.
Forged brass handles.
Zinc-plated carbon steel handle pins, pull rings and safety clips.
Buna-N gasket included.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
DA45-A200	2"	250 PSI	B85 Grade 383	1.65 lbs
DA45-A300	3"	150 PSI	B85 Grade 383	2.45 lbs
DA45-A400	4"	150 PSI	B85 Grade 383	4.90 lbs
DA45-A600	6"	75 PSI	B85 Grade 383	14.80 lbs
