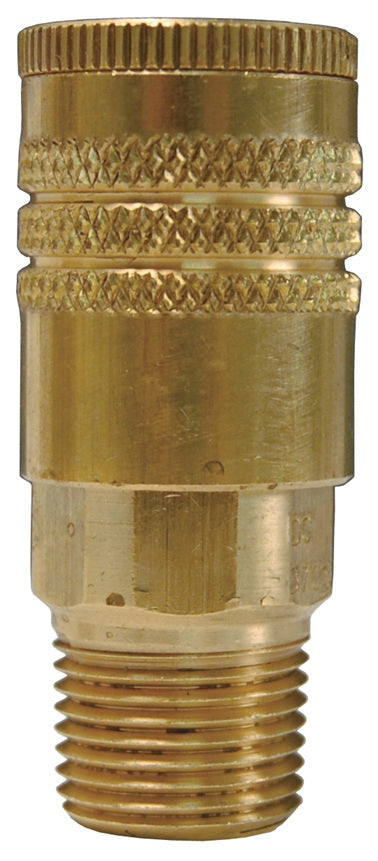

DC37 Air Chief by Dixon Valve | Pneumatic ARO Speed Interchange Coupler/Socket | 1/4" Male NPT x 1/4" Body Size | Brass

Name: DC37 Air Chief by Dixon Valve | Pneumatic ARO Speed Interchange Coupler/Socket | 1/4" Male NPT x 1/4" Body Size | Brass
Brand: Dixon
SKU: DC37 Dixon
Price: 10.85 USD
Availability: InStock

Save $7.23

$18.08

$18.08 - $18.08

$18.08

$10.85

$10.85 - $10.85

$10.85

Air Chief ARO Speed Quick-Connect Couplers On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F

Specifications for Variant SKU: DC37 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female ARO 210 QD Interchange, 1/4in Male NPT, 1/4in Female ARO 310 QD Interchange
Material(s):	Brass

Compatibility & Interchange:
Interchanges with ARO 210 and 310 designs.
Specifications:
Pressure rating: 300 PSI at ambient temperature 70 °F (21 °C) Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
Pressure rating given at ambient temperature 70 °F (21 °C).

Pneumatic ARO Speed Interchange Coupler/Socket \| Male NPT

Part Number	Coupling Type	Material	Body Size	Female NPT	Flow Rating at 100 PSI
DC37	Socket/Female	Brass	1/4"	1/4"	37 CFM
DC3703	Socket/Female	Brass	1/4"	3/8"	37 CFM
DC35	Socket/Female	Steel	3/8"	3/8"	70 CFM

Pneumatic ARO Speed Interchange Plug \| Male NPT

Part Number	Coupling Type	Material	Body Size	Female NPT	Flow Rating at 100 PSI
DCP37	Plug/Male	Steel	1/4"	1/4"	37 CFM
DCP3703	Plug/Male	Steel	1/4"	3/8"	37 CFM
DCP35	Plug/Male	Steel	3/8"	3/8"	70 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
