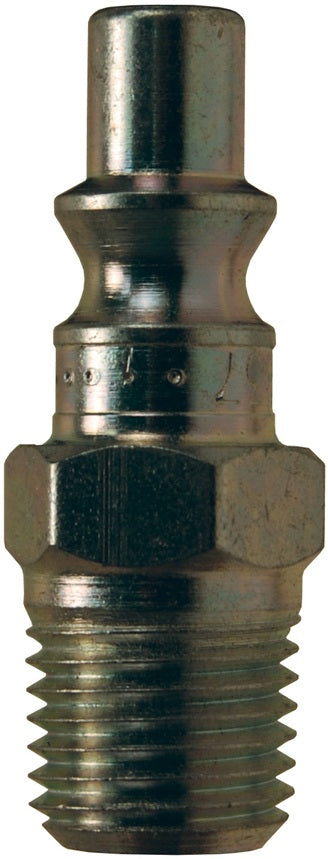

DCP3703 Air Chief by Dixon Valve | Pneumatic ARO Speed Interchange Plug | 3/8" Male NPT x 1/4" Body Size | Steel

DCP3703 Air Chief by Dixon Valve | Pneumatic ARO Speed Interchange Plug | 3/8" Male NPT x 1/4" Body Size | Steel

Save $2.78 Save $2.78
$6.95
$6.95 - $6.95
$6.95
$4.17
$4.17 - $4.17
$4.17

Air Chief ARO Speed Quick-Connect Plugs On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Specifications for Variant SKU: DCP3703 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Male ARO 210 QD Interchange, 3/8in Male NPT, 1/4in Male ARO 310 QD Interchange
Material(s): Steel
Compatibility & Interchange:
  • Interchanges with ARO 210 and 310 designs.
Specifications:
  • Pressure rating: 300 PSI at ambient temperature 70 °F (21 °C)
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • Pressure rating given at ambient temperature 70 °F (21 °C).
Pneumatic ARO Speed Interchange Plug | Male NPT
Part Number Coupling Type Material Body Size Female NPT Flow Rating
at 100 PSI
DCP37 Plug/Male Steel 1/4" 1/4" 37 CFM
DCP3703 Plug/Male Steel 1/4" 3/8" 37 CFM
DCP35 Plug/Male Steel 3/8" 3/8" 70 CFM
Pneumatic ARO Speed Interchange Coupler/Socket | Male NPT
Part Number Coupling Type Material Body Size Female NPT Flow Rating
at 100 PSI
DC37 Socket/Female Brass 1/4" 1/4" 37 CFM
DC3703 Socket/Female Brass 1/4" 3/8" 37 CFM
DC35 Socket/Female Steel 3/8" 3/8" 70 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
